Key attributesDescription:
Model Number | C7RF 1 to 4 |
Application | Hotel |
Design Style | Contemporary |
Material | Anti-flammable PC +ABS |
Place of Origin | Guangdong, China |
Brand Name | OEM/ODM |
Type | Floor Heating Parts |
Certification | ISO, CE, RoHs |
Feature | Energy Saving |
Color | White |
Power Supply | 230VAC, 50HZ |
Function | Temperature control |
After-sale Service | Online technical support, Return and Replacement |
Project Solution Capability | graphic design |
Warranty | 2 years |
Specification:
Programmability | 7 Day Programmable, 6 Time & 6 Temp per day |
Power Supply | DC 2 x AA 1.5V Alkaline batteries |
Display accuracy | ±1°C (at 20°C) |
Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current | 6 A (2 A inductive load) |
Temperature Range | 5°C-35°C in 0.5°C |
Setpoint Range | 10°C-30°C in 0.5°C |
Power Consumption | 6W |
Operating Frequency | 868.35MHZ |
Transmission Distance | approx. 200m in open terrain |
Maximum Load | 6(2)A, 230V |
Dimensions | 130 x 80 x 35 mm |
Product Description:

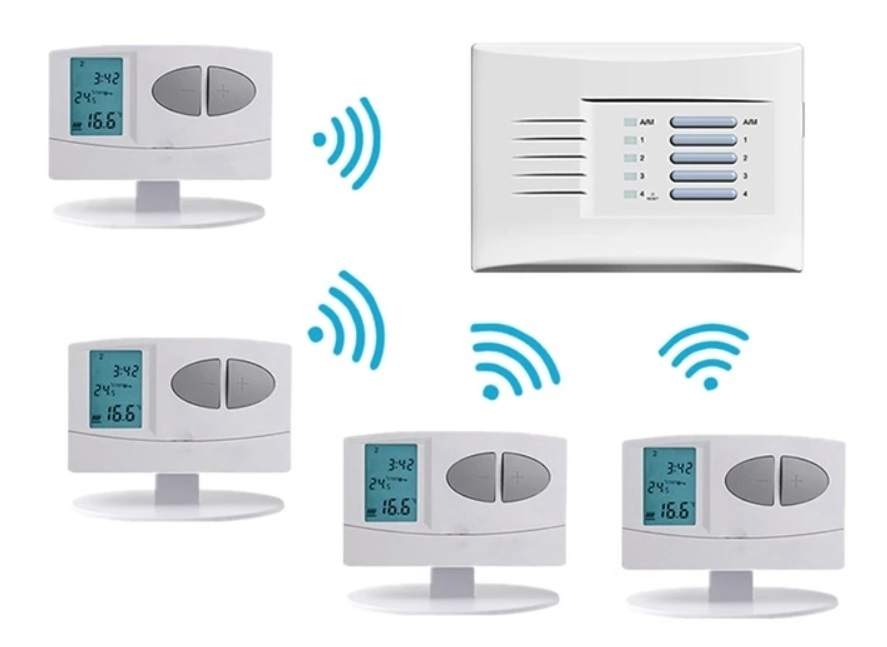

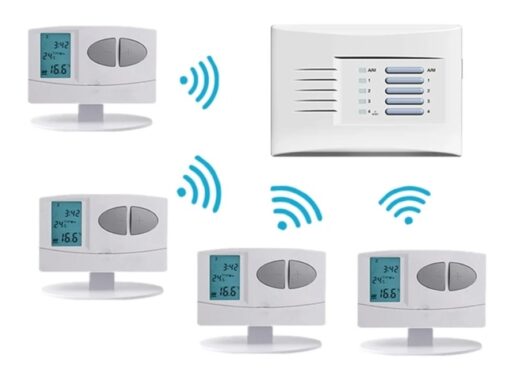

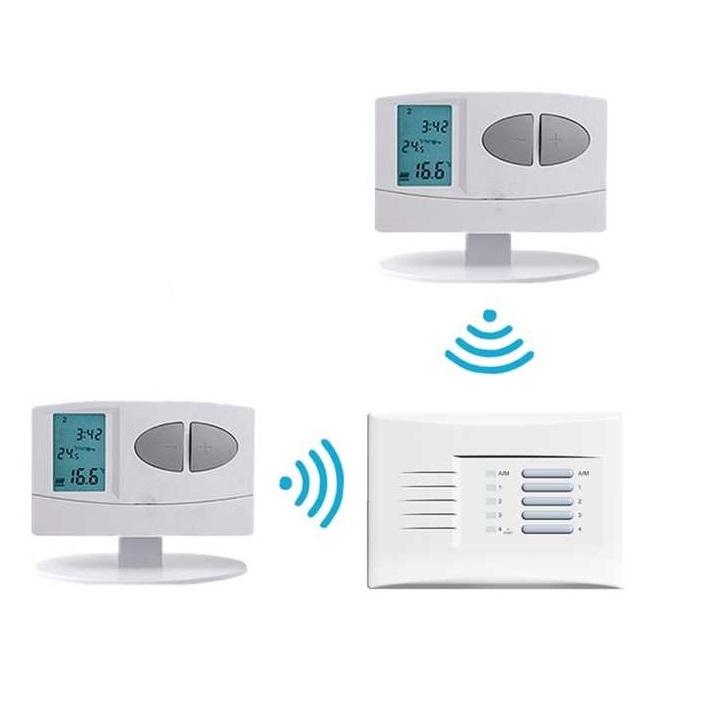

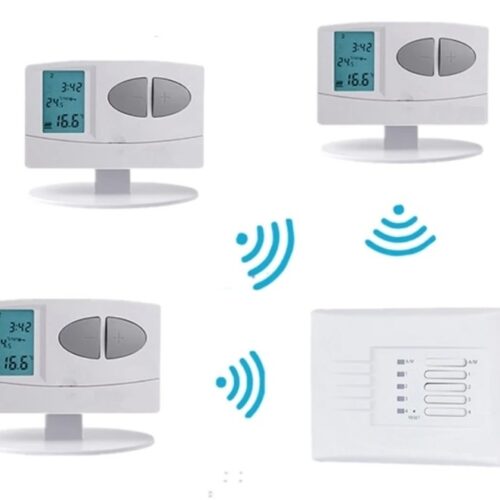

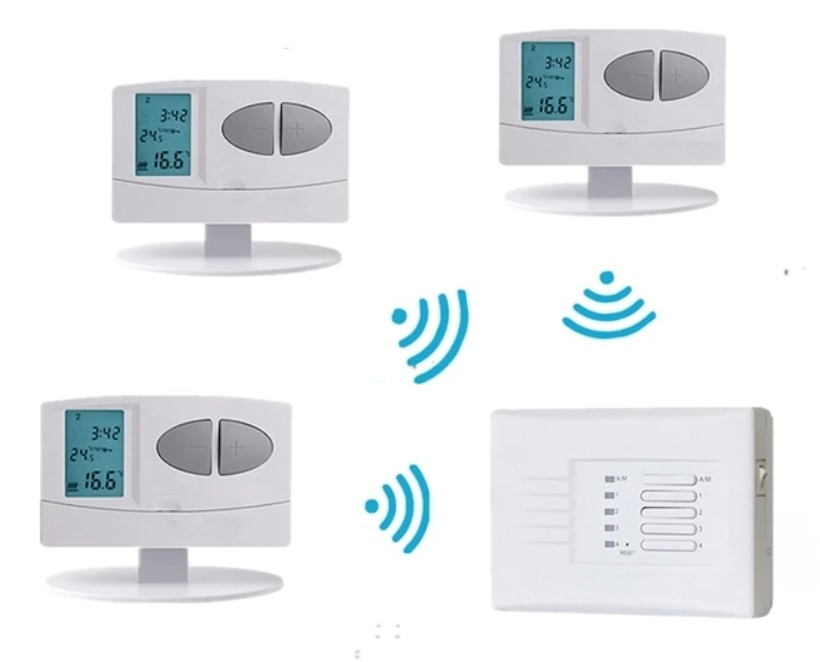

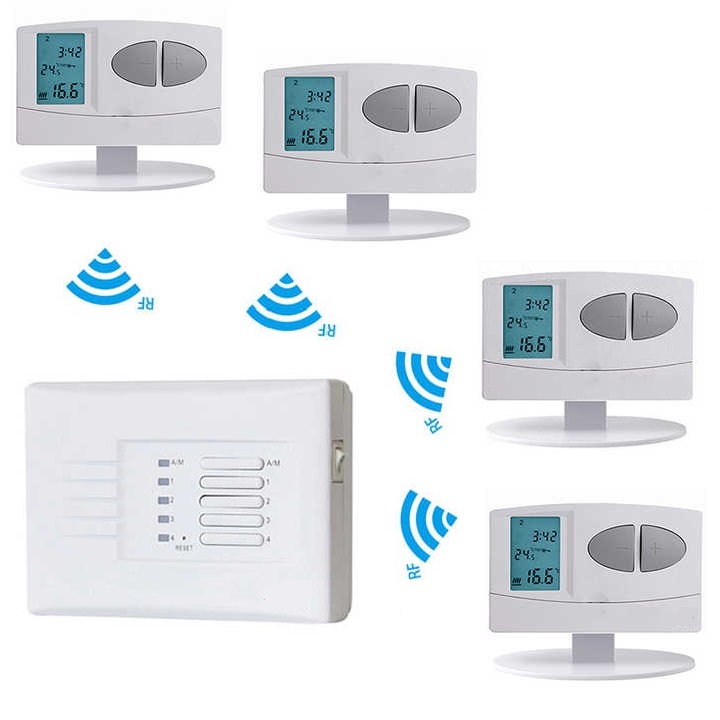

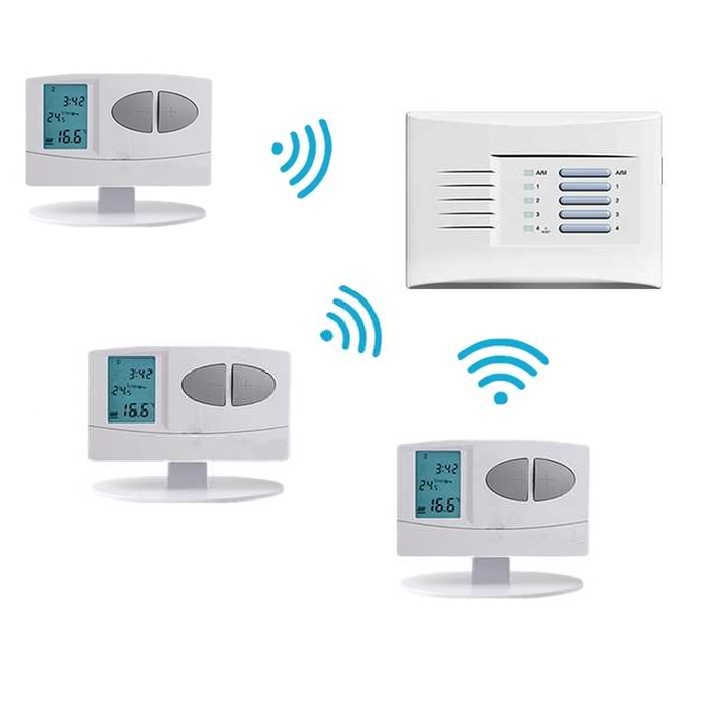

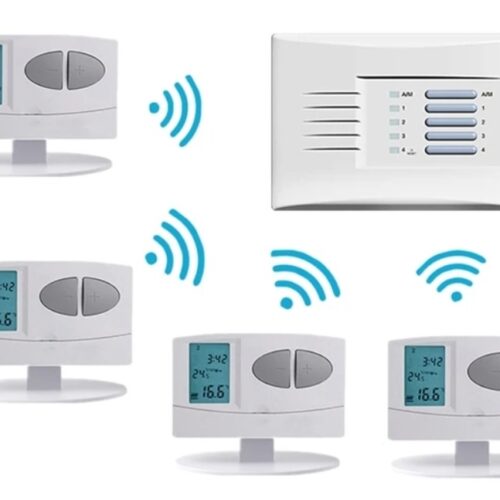

>> Up to max. 4 zones to be controlled independently or simultaneously
>> Large push button
>> Clear LCD display
>> Green backlight color
>> Room Temperature Calibration adjustment (in -3~+3°C)
>> Switching sensitivity adjustable
>> Manual override mode and Holiday mode
>> Keypad Lockout
>> Factory pre-set programme
