Key attributesDescription
Model Number | 3105 |
Application | Hotel |
Design Style | Contemporary |
Material | ABS+PC |
Place of Origin | Guangdong, China |
Brand Name | OCSTAT/OEM |
Certification | RoHS CE ISO |
Feature | Energy Saving |
Color | White |
Power Supply | 24V or Battery |
Function | Adjustable Thermostat |
MOQ | 500pcs |
Package | Carton Box |
After-sale Service | Online technical support, Return and Replacement |
Project Solution Capability | graphic design |
Warranty | 1 Year |
Specification
Programmability | 5/1/1 Programmable |
Sensor | NTC |
Power Supply | DC 2 x AAA 1.5V Alkaline batteries, 24VAC (18~30VAC), 50/60 Hz for hardwire (common wire) |
Display accuracy | ±1°C (at 20°C) |
Temperature Range | 32℉-99℉ (1℃-40℃) |
Setpoint Range | 44℉-90℉ (7℃-32℃) |
Product Description
>> 2 Heat / 2 Cool
>> 5/1/1 programmable
>> Batteries or 24V power

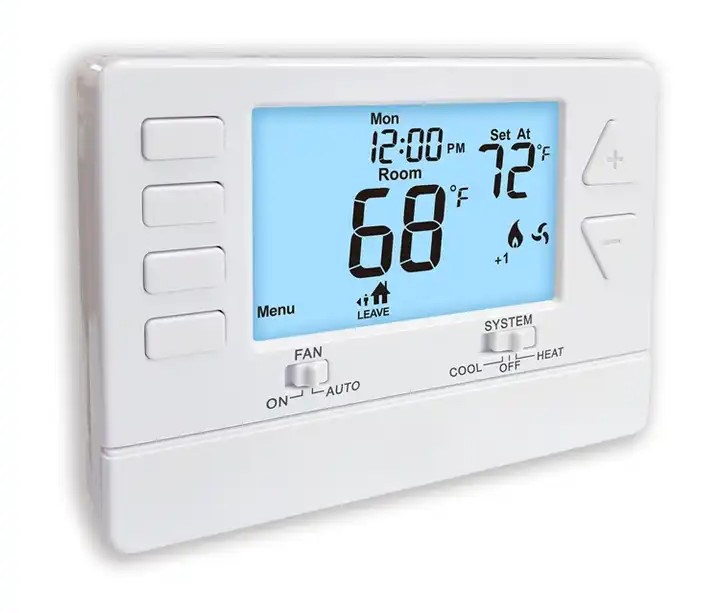

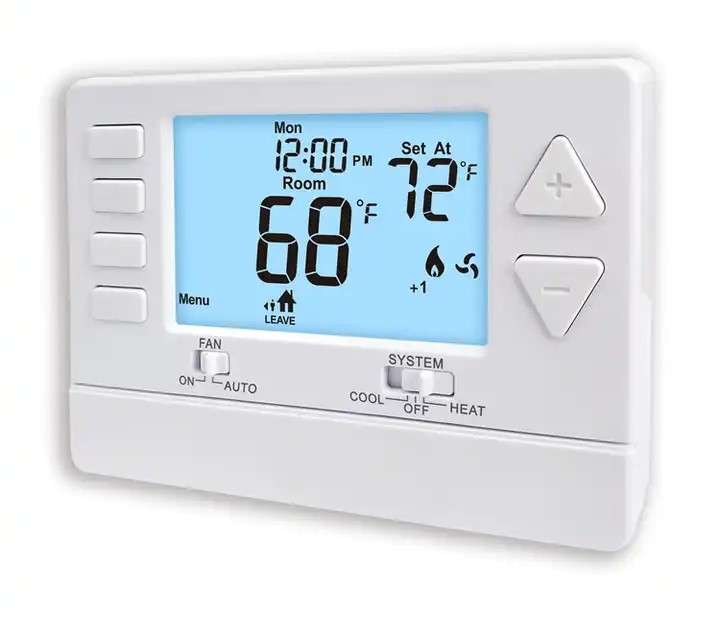

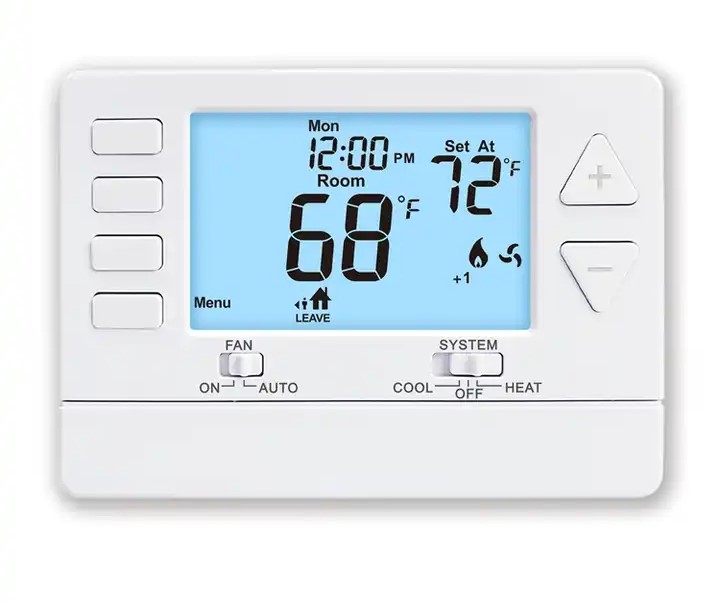

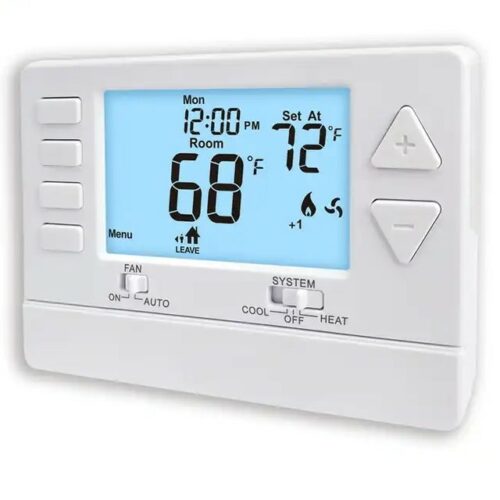

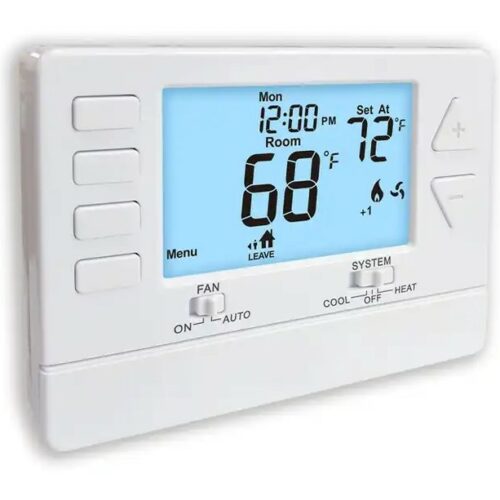

>> Large, easy to ready clear LCD display

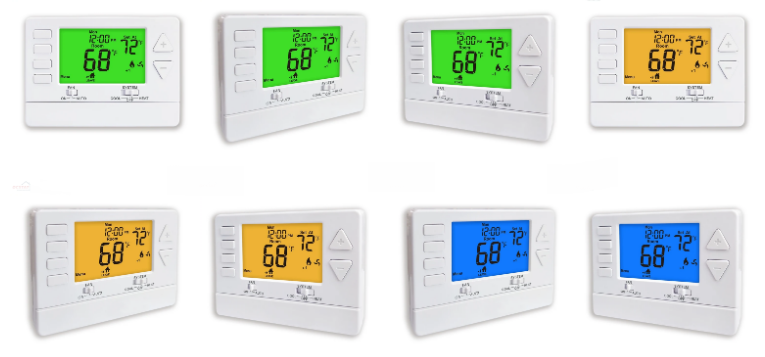

>> Various backlight color optional
>> Easy menu driven programming
>> Intuitive wake, leave, return, sleep programming icons
>> Electric or Gas configurable
>> Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
>> Filter change indicator (selectable on or off)
>> Room temperature calibration adjustable
>> 5 minute compressor delay protection (selectable on or off)
>> Contemporary design
>> Factory pre-set programme
