Key attributesDescription:
Model Number | E3RF-L |
Application | Apartment |
Design Style | EUROPEAN |
Material | Anti-flammable PC +ABS |
Place of Origin | Guangdong, China |
Brand Name | OCSTAT/OEM |
Type | Floor Heating Parts/Floor Heating Thermostats |
Certification | CE ISO RoHS |
Feature | Save Energy |
Power Supply | 230VAC, 50HZ |
Screen | Digital LCD |
MOQ | 500pcs |
Package | Carton Box |
After-sale Service | Online technical support, Return and Replacement |
Project Solution Capability | graphic design |
Warranty | 1 Year |
Specification:
Programmability | Non-programmable |
Sensor | NTC |
Power Supply | DC 2 x AA 1.5V Alkaline batteries |
Display accuracy | ±1°C (at 20°C) |
Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current | 6 A (2 A inductive load) |
Temperature Range | 5°C-35°C in 0.5°C |
Setpoint Range | 10°C-30°C in 0.5°C |
Power Consumption | 6W |

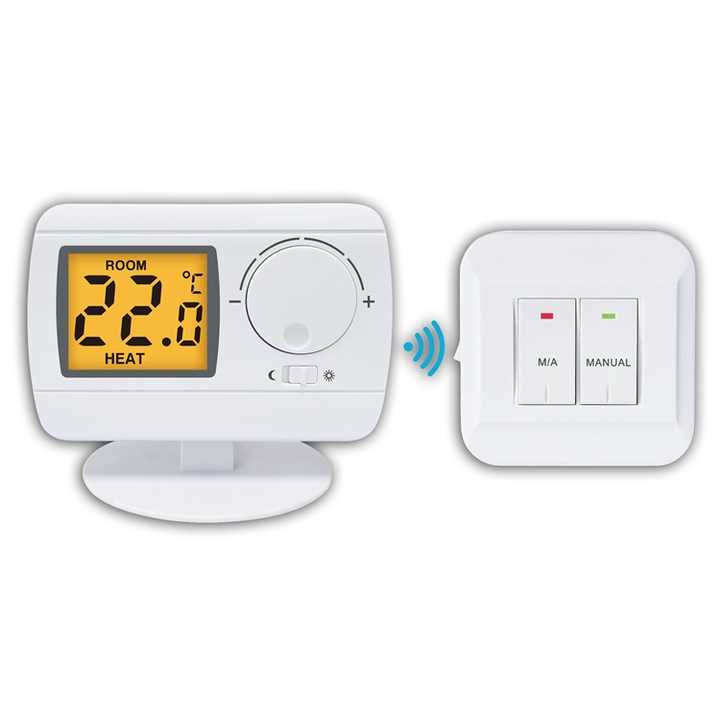

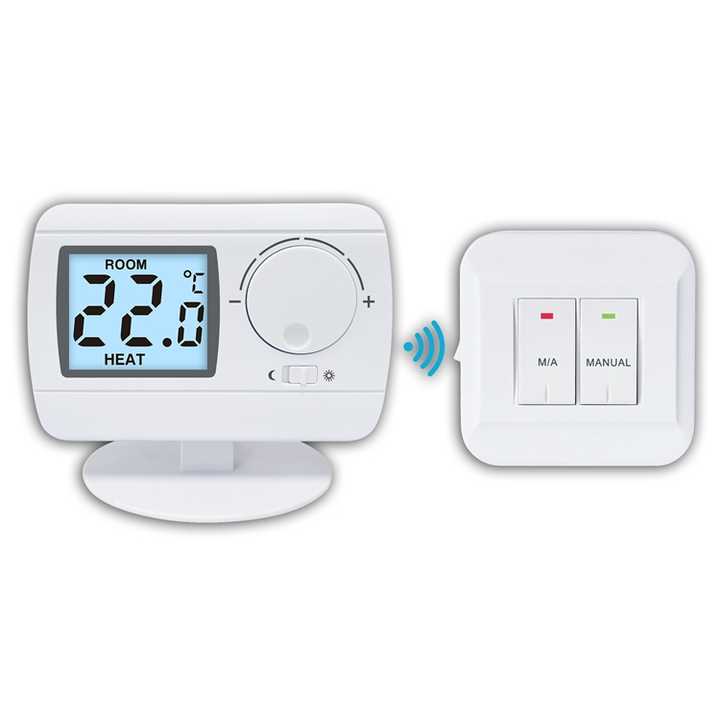

Operating Frequency | 868.35MHZ |
Transmission Distance | approx. 100m in open terrain |
Maximum Load | 6(2)A, 230V |
Defrosting Temperature | +7°C |

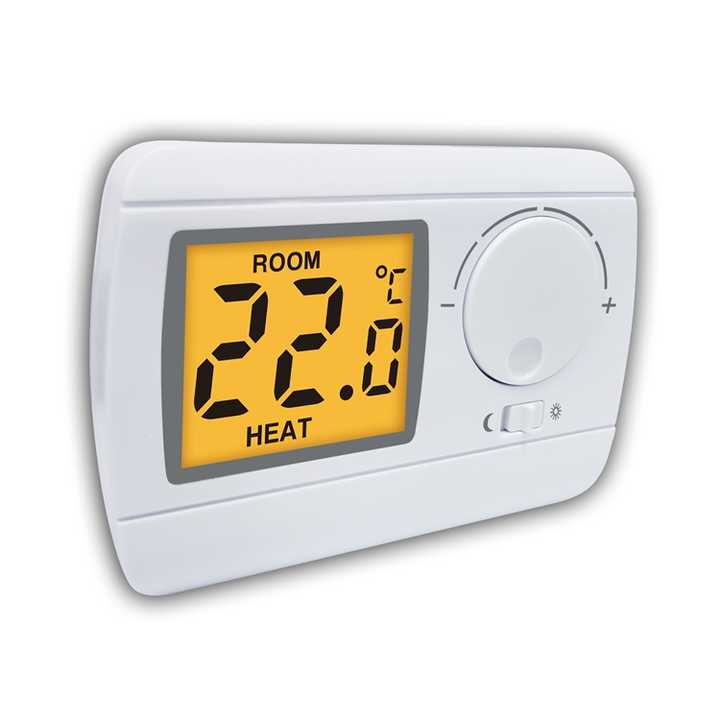

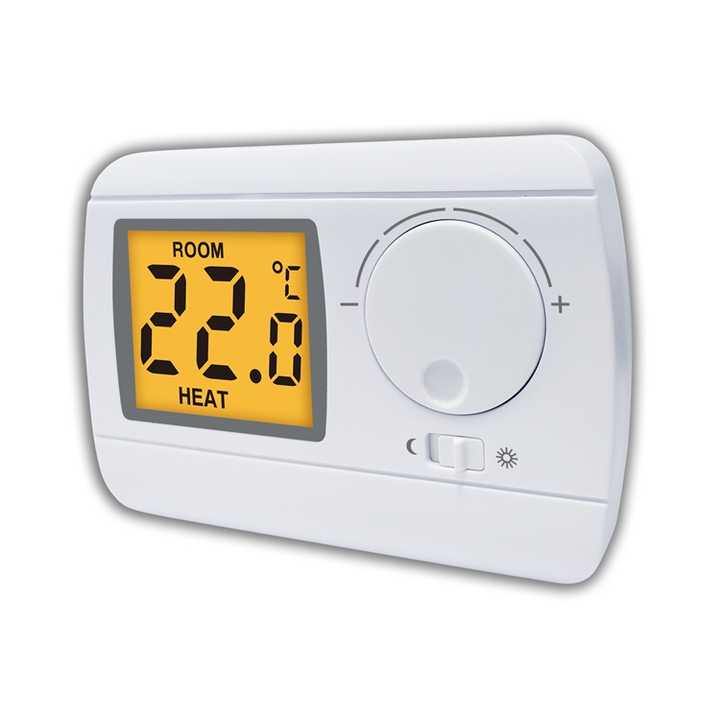

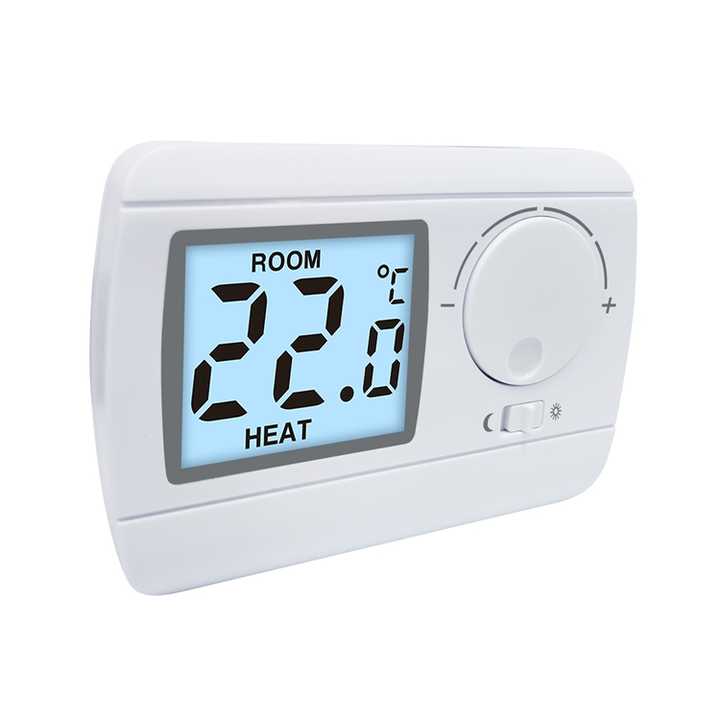

Product Description:

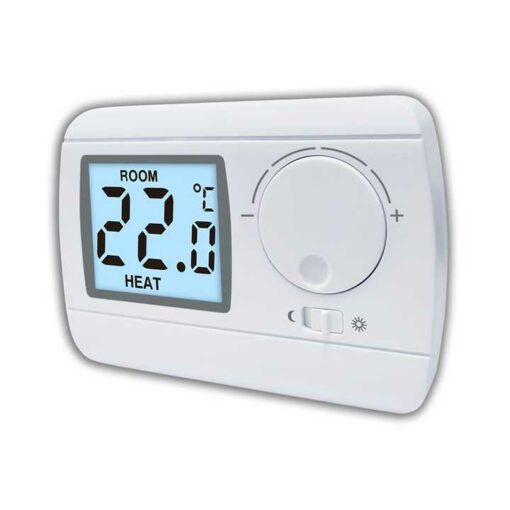

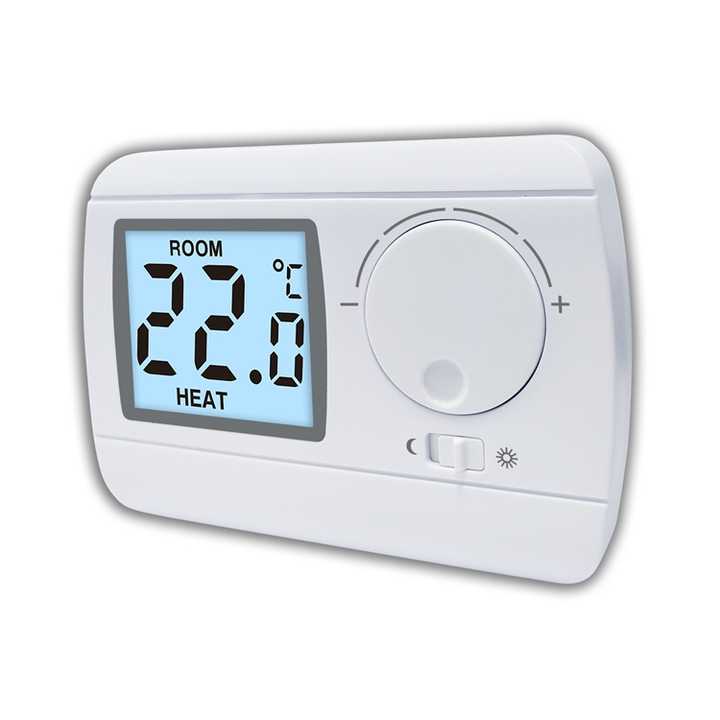

>> Large LCD display

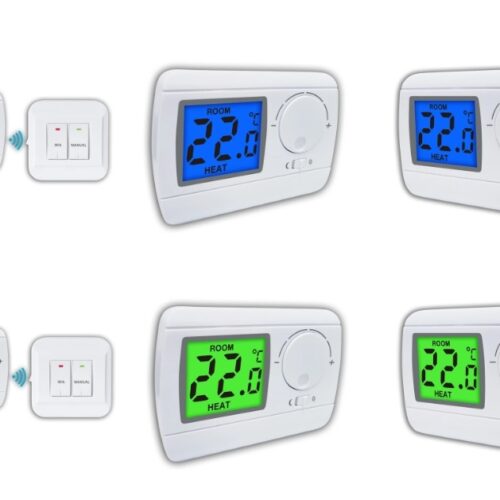

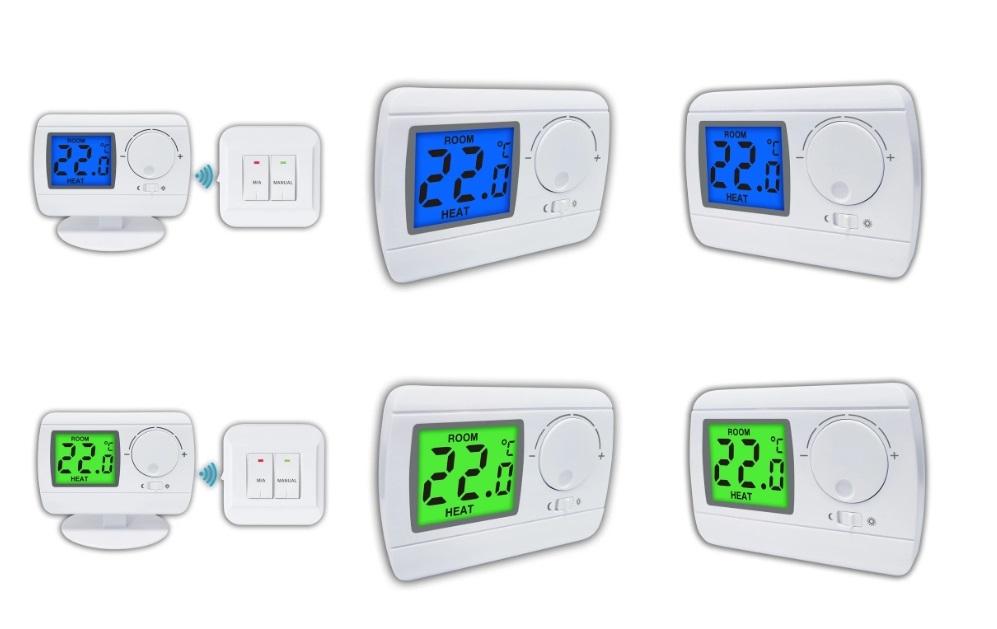

>> White/Blue/Orange Backlight
>> HEAT(Heating)/COOL(Cooling)/OFF(Frost Protection)

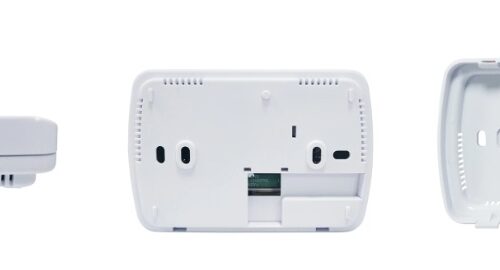

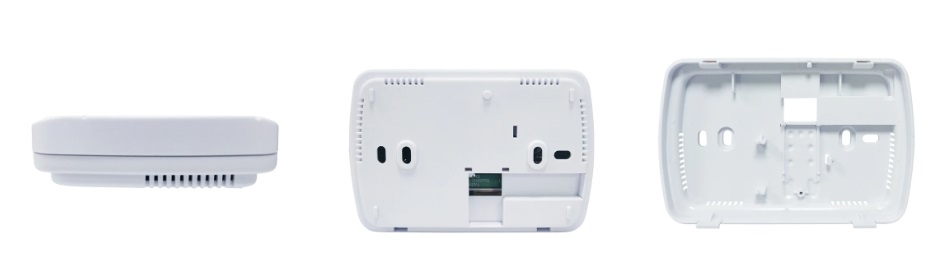

>> Wall mounted
>> Power Supply: DC 2 x AA 1.5V Alkaline Batteries
>> Switchable Current: 6A,230V
