Key attributesDescription:
Model Number | ST27 |
Application | Home Office |
Design Style | Contemporary |
Material | Anti-flammable PC +ABS |
Place of Origin | Guangdong, China |
Brand Name | OEM |
Type | Floor Heating Parts |
Certification | CE ROHS |
Backlight | White/Customized |
Theory | Temperature controller |
Floor Heating Valve | Anti-condensation Balance Valve |
After-sale Service | Free spare parts, Return and Replacement |
Project Solution Capability | graphic design, 3D model design |
Warranty | 1 Year |
Specification:
Programmability | 7 Day, 5/2 Day and 24 hour Programmable |
System Switch | Heat/Cool/Off |
Sensor | NTC |
Power Supply | 2*AAA size battery |
Display accuracy | ±1°C (at 20°C) |
Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current | 6 A (2 A inductive load) |
Temperature Range | 0°C-40°C in 0.5°C |
Setpoint Range | 5°C-35°C in 0.5°C |
Power Consumption | 2W |

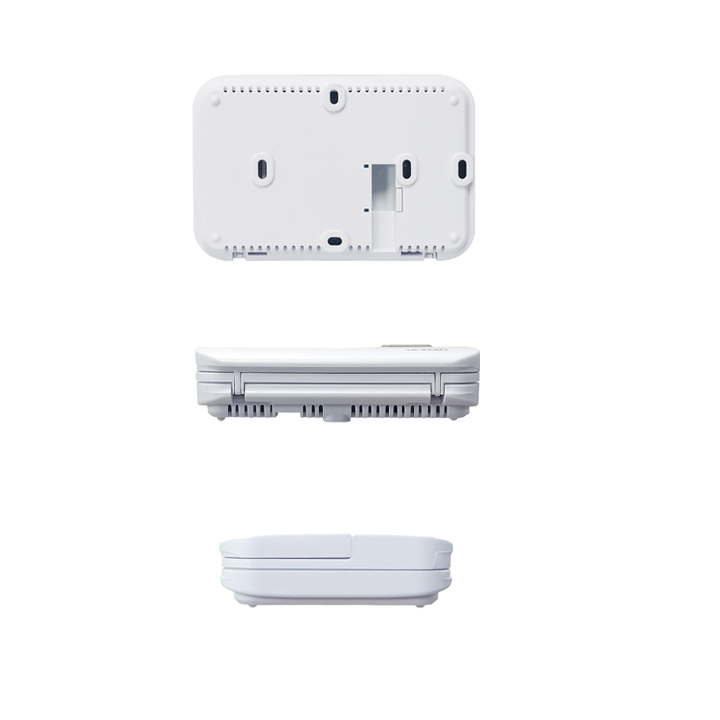

Installation | Mounts on wall or junction box |
Maximum Load | 8(2)A 230 VAC Max |

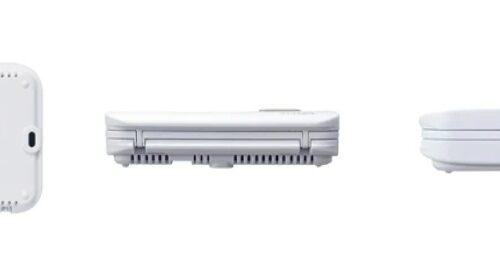

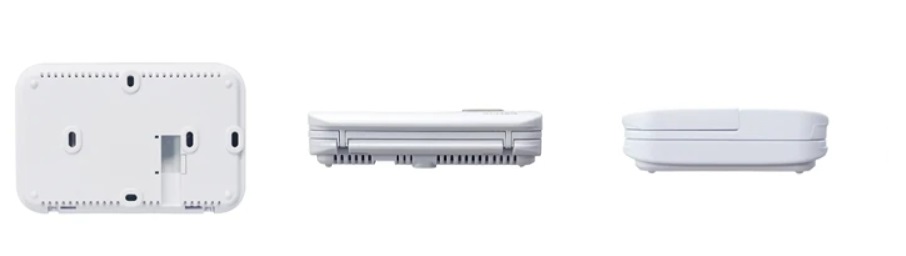

Dimensions | 119 x 80 x 26 mm |
Product Description:

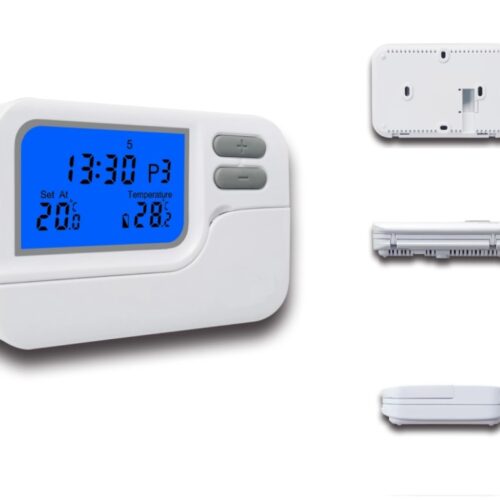

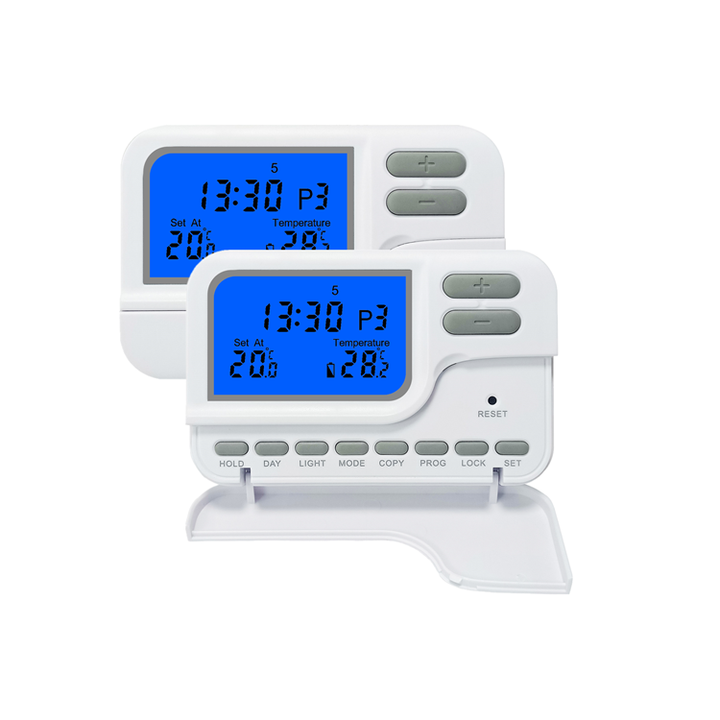

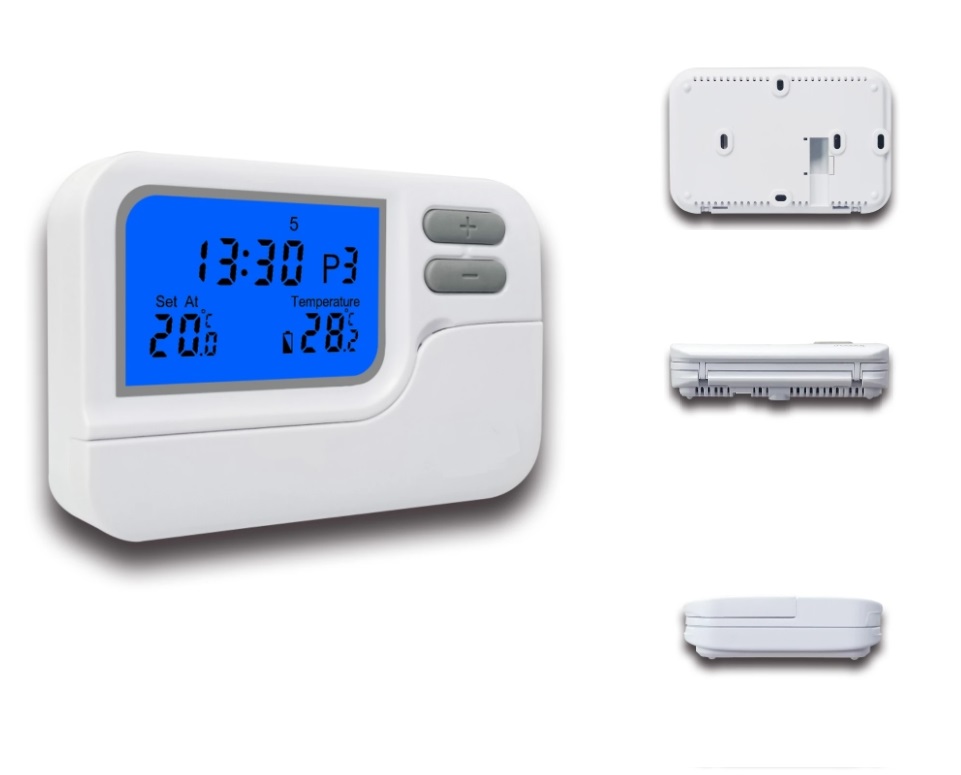

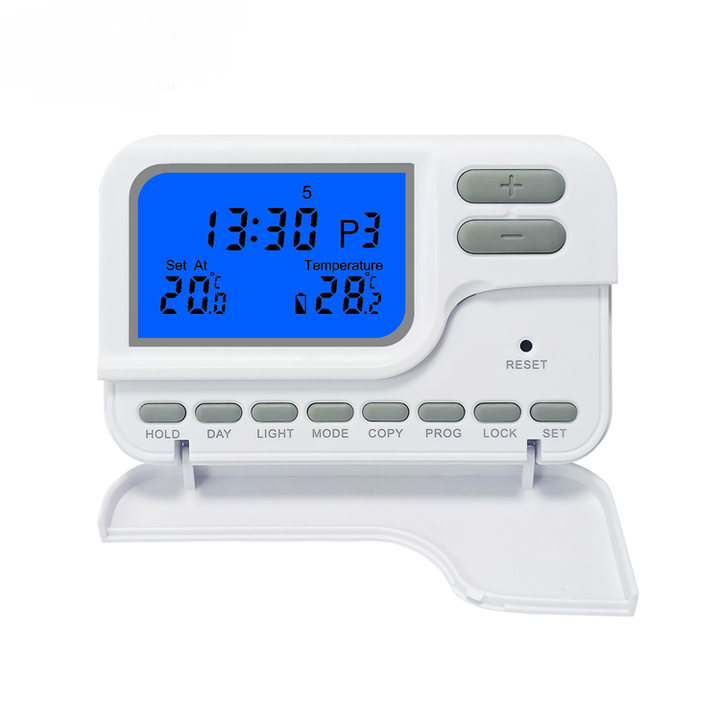

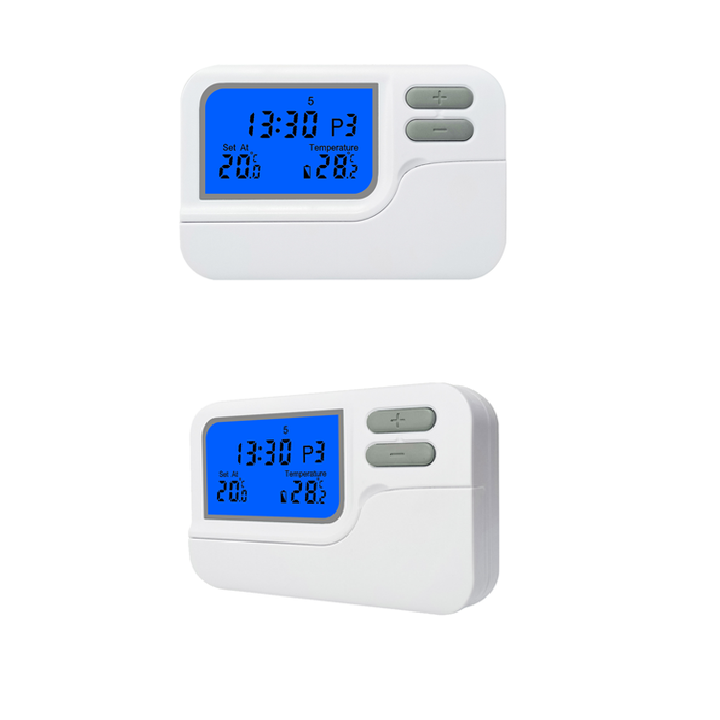

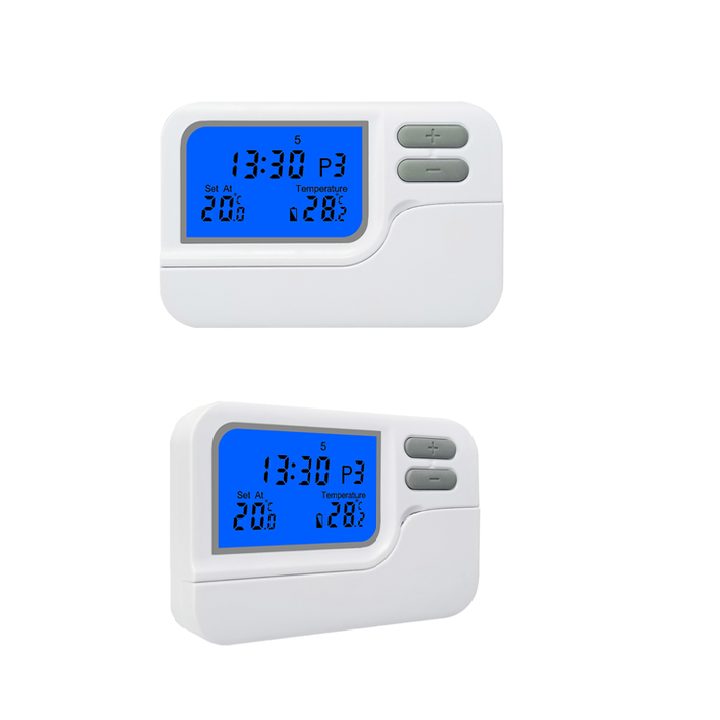

ST27 is a wired room thermostat with lcd screen and push buttons, which is designed for electric/floor/water heating system. It has 7 days of programmable, easy-to-program on/off settings every day. You can set the temperature you want on the system.
It is used for temperature control of indoor places such as bedrooms, hotels and kitchens.
