Key attributesDescription
Model Number | STN731W |
Application | Hotel |
Design Style | Modern |
Material | PC+ABS (Fireproof) |
Place of Origin | Guangdong, China |
Brand Name | OCSTAT |
Backlight | Blue/Green/White/Orange |
Power Supply | 24 VAC or Batteries Power |

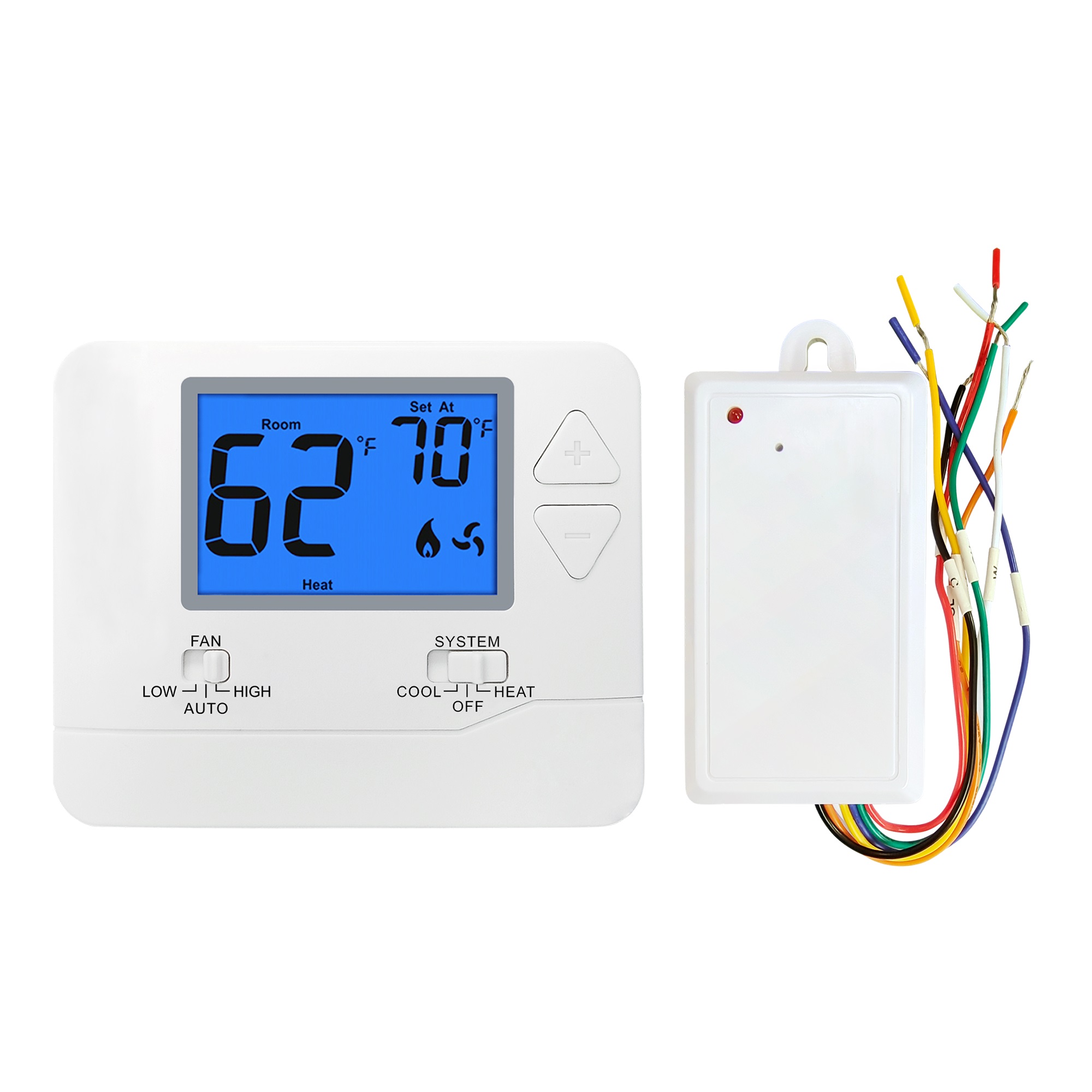

Communication RF | 433.92 MHz |
After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE |
Project Solution Capability | graphic design |
Warranty | 2 years |
Specification:
Stages | 1 HEAT & 1COOL |
Programmability | Non-programmable |
Load rating | 1 amp per terminal, 1.5 amp maximum all rerminal combined |
Sensor | NTC |
Display accuracy | ±1°C (at 20°C) |

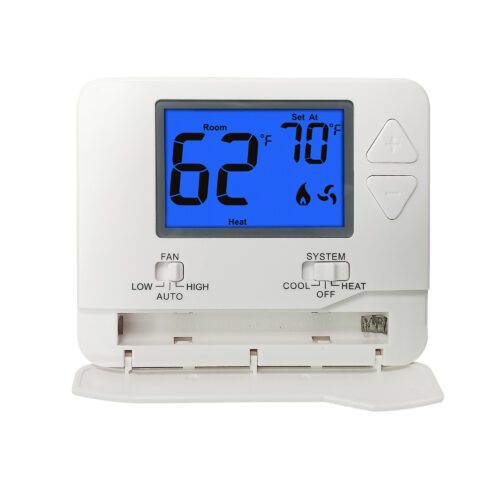

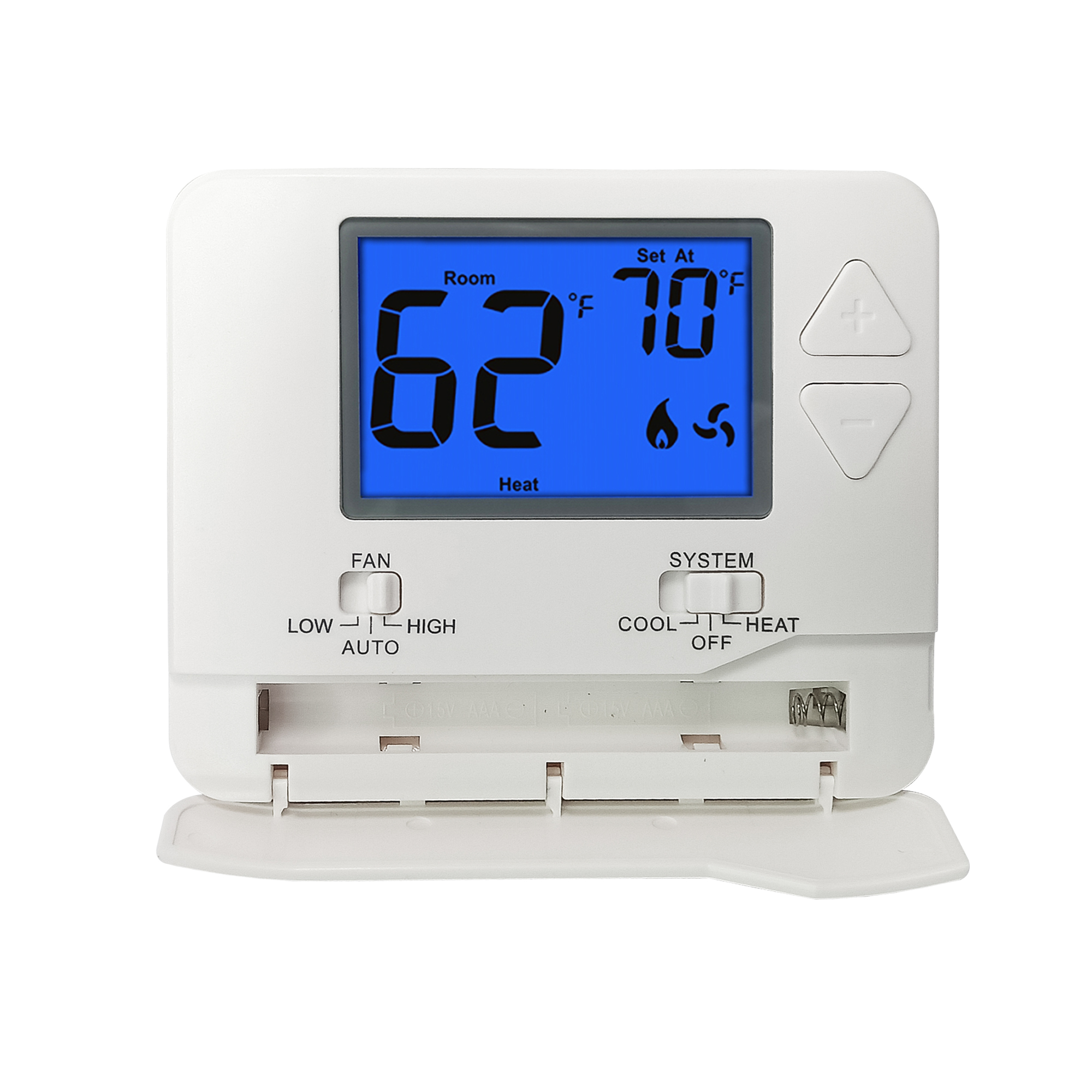

Switchable Voltage | 24 V AC & Batteries |
Temperature Range | 32℉ to 99℉ (1℃ to 40℃) |
Setpoint Range | 44℉ to 90℉ (7℃ to 32℃) |
Power Consumption | 2W |
Installation | Mounts on wall or junction box |
Dispaly | 4.5 sq.Inch |
Operating ambient | 32℉ to +105℉ (1℃ to +41℃) |
Operating Humidity | 90% non-condensing maximum |
Dimensions | 120 x 98 x 28 MM |
Product Description:
1) Universal 2 Heat / 1 Cool Heat pump or 1 Heat / 1 Cool conventional

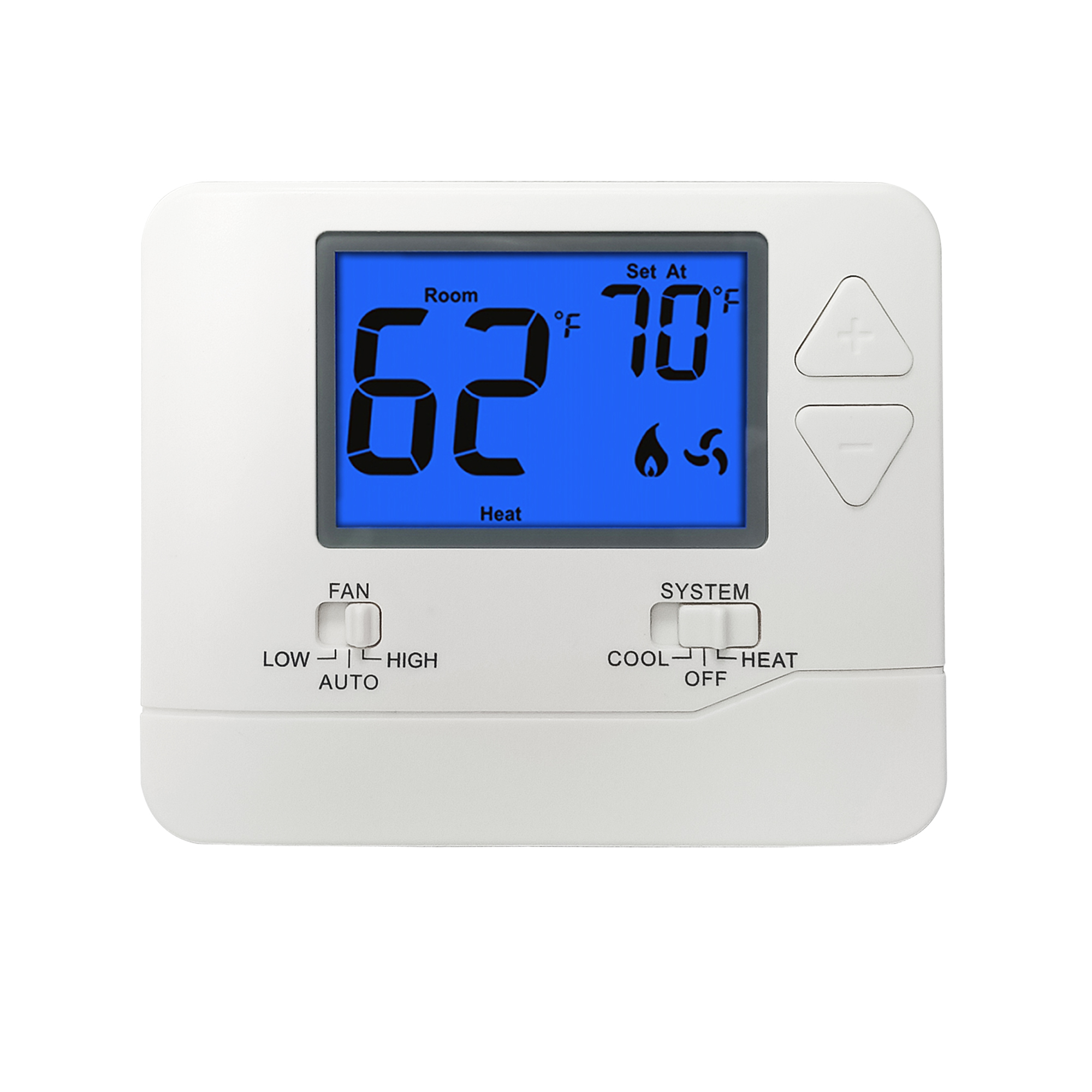

2) Large, easy to read clear LCD display

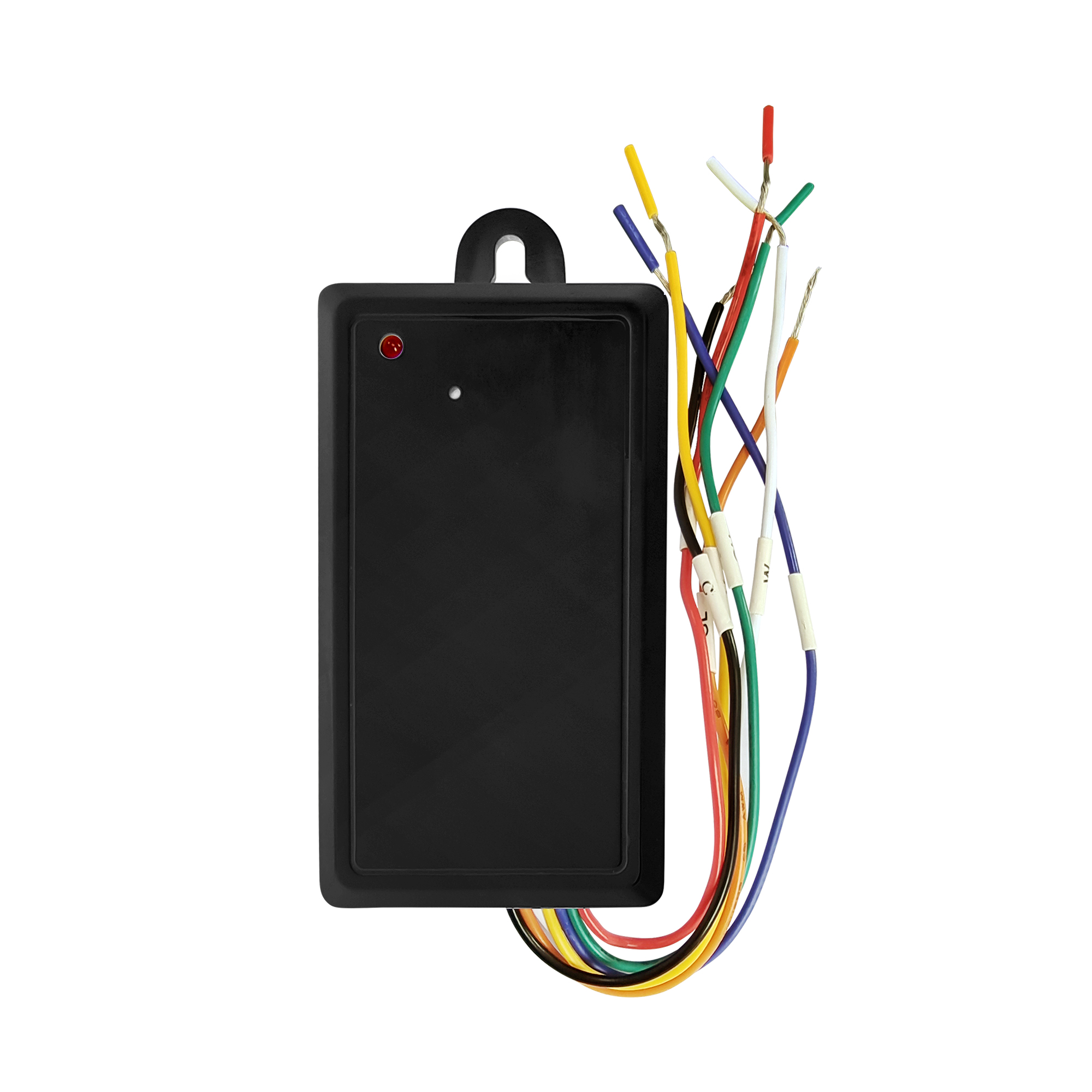

3) Wired PTAC thermostat and base module
4) Affordable comfort control
5) Separate B & O terminals
6) Separate heating and cooling swing (cycle rate) adjustments
7) Room temperature calibration adjustments
8) Heating and cooling set point limit

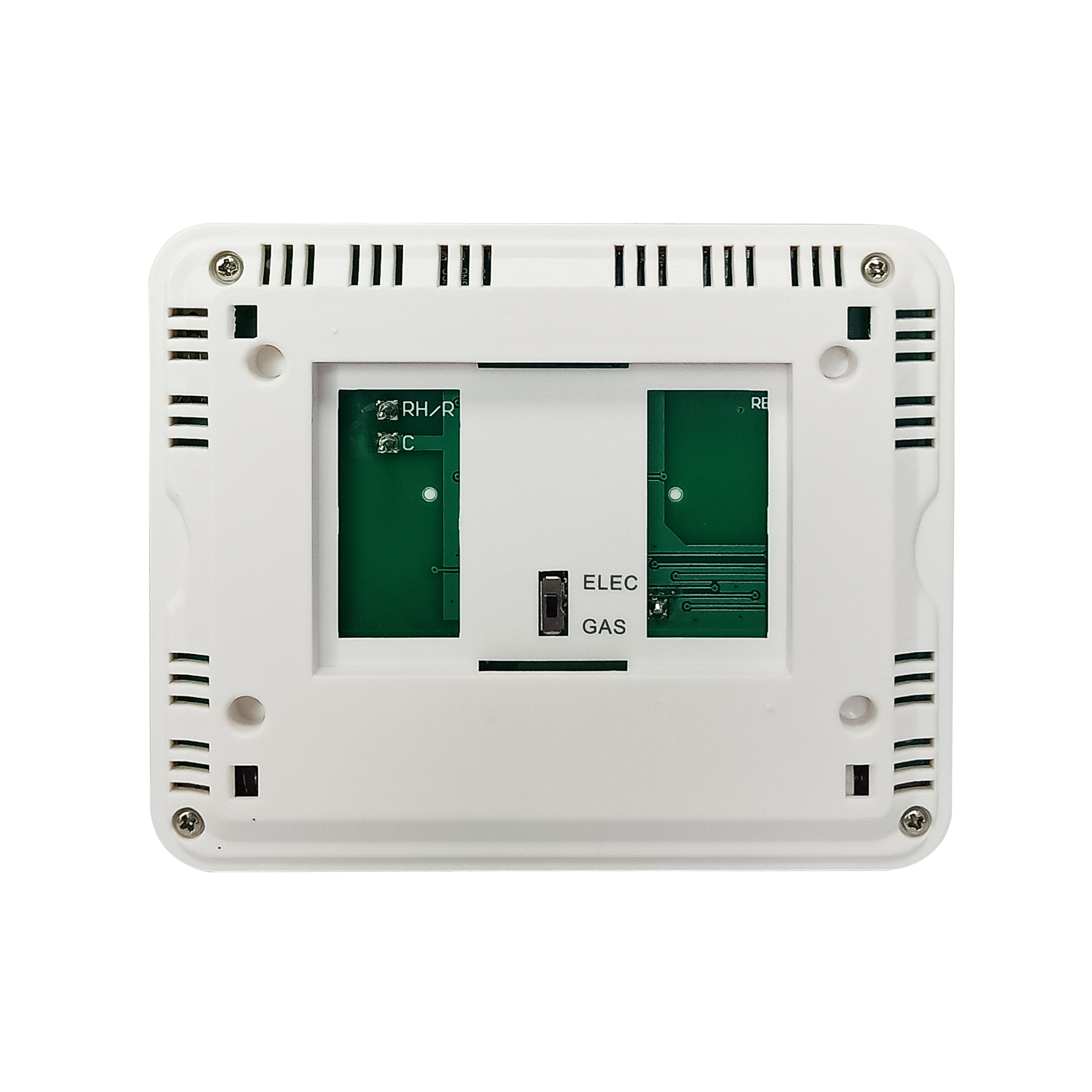

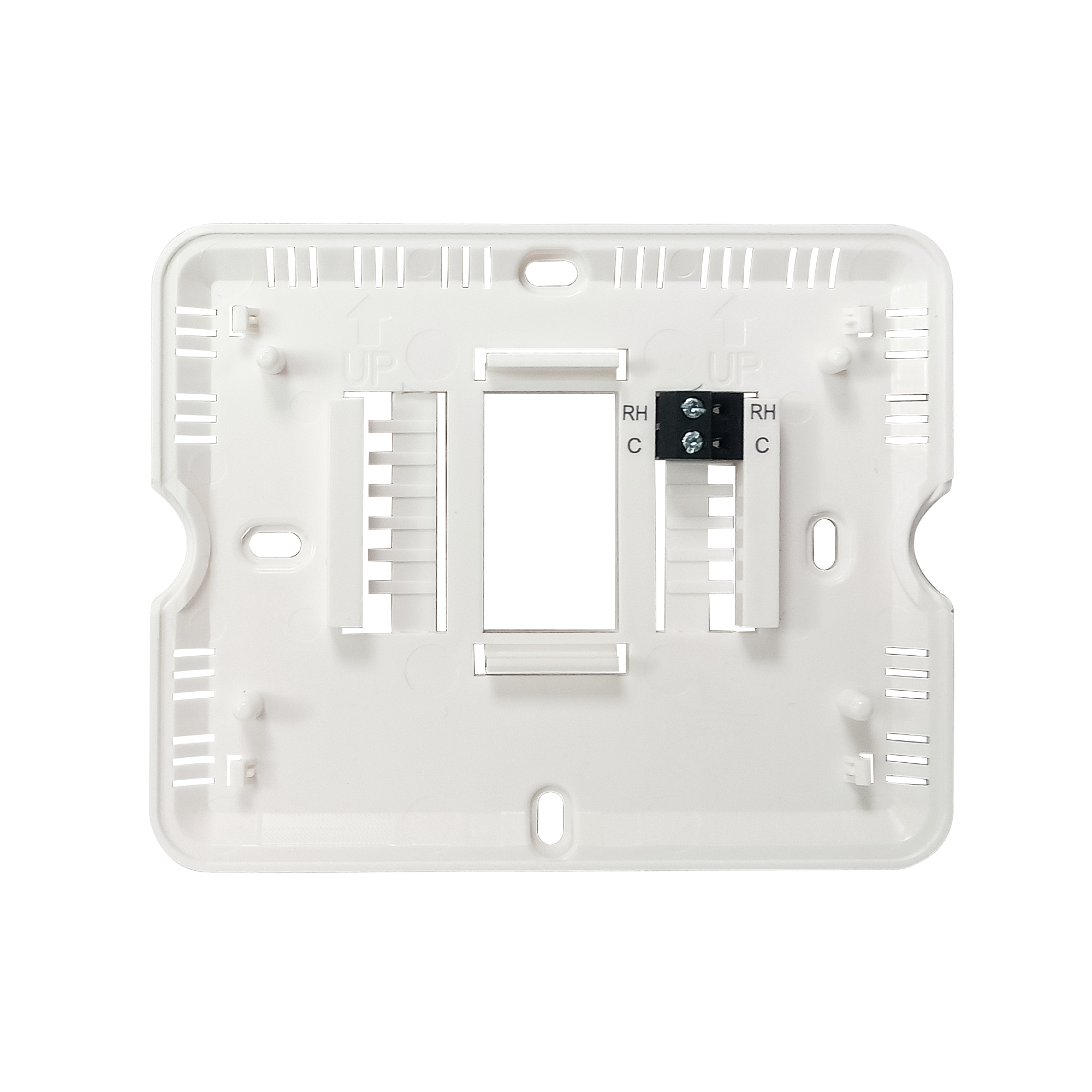

9) Universal sub-base
