Key attributesDescription:
Model Number | STN725 |
Application | Indoors/Bathroom |
Material | Anti-flammable PC +ABS |
Place of Origin | Guangdong, China |
Brand Name | OEM |
Type | Floor Heating Parts |
Certification | CE |
Feature | Saving energy |
Relay | Omron |
Power Supply | Battery or 24V power |
Screen | Digital LCD |
Function | Temperature Control |
After-sale Service | Online technical support, Return and Replacement |
Project Solution Capability | graphic design, NONE |
Warranty | 1 Year |
Specification:
Load rating | 1 amp per terminal, 1.5 amp maximum all terminals combined |
Sensor | NTC |
Display accuracy | 土1°F |
Switchable Voltage | 18 to 30 VAC, NEC Class I, 50/60 Hz for hardwire (common wire)
Battery power from 2 AAA Alkaline Energizer batteries |
Temperature Range | 41°F to 95°F (5°C to 35°C) |
Setpoint Range | 44°F to 90°F (7°C to 32°C) |
Swing (cycle rate or differential) | Heating is adjustable from 0.2°F to 2.0°F
Cooling is adjustable from 0.2°F to 2.0°F |
Operating ambient | 32°to +105° (0°C to +41°C) |
Operating Humidity | 90% non-condensing maximum |
Product Description:
• 2 Heat / 1 Cool
• Heat Pump
• 5/1/1 programmable
• Batteries or 24V power

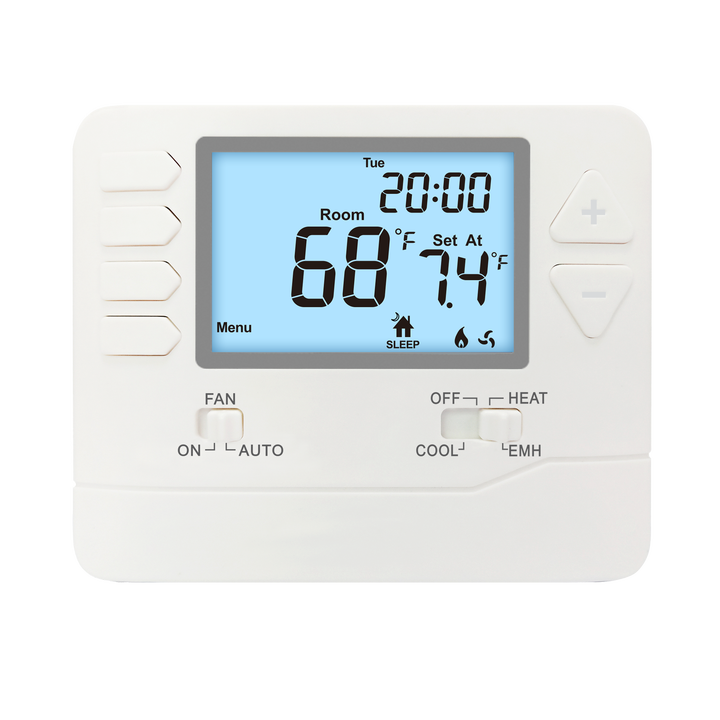

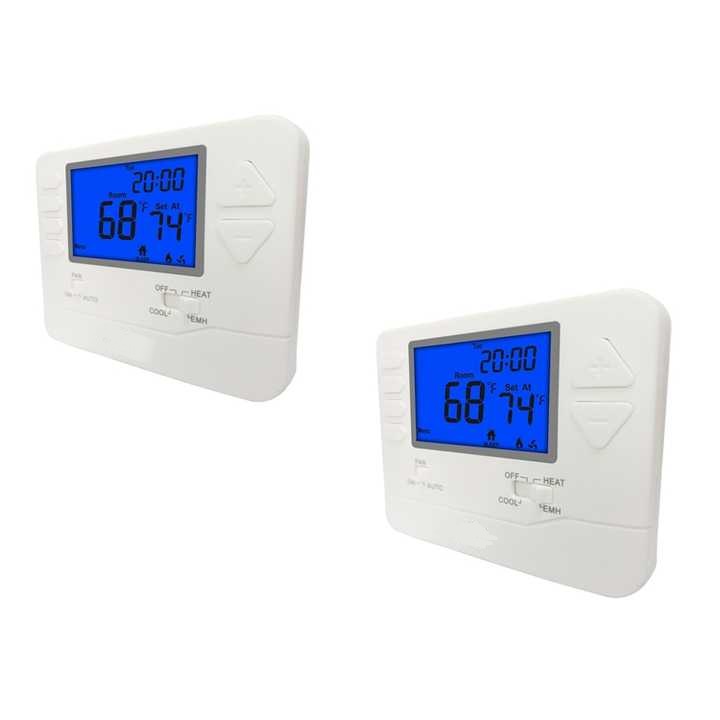

• Large, easy to ready clear LCD display

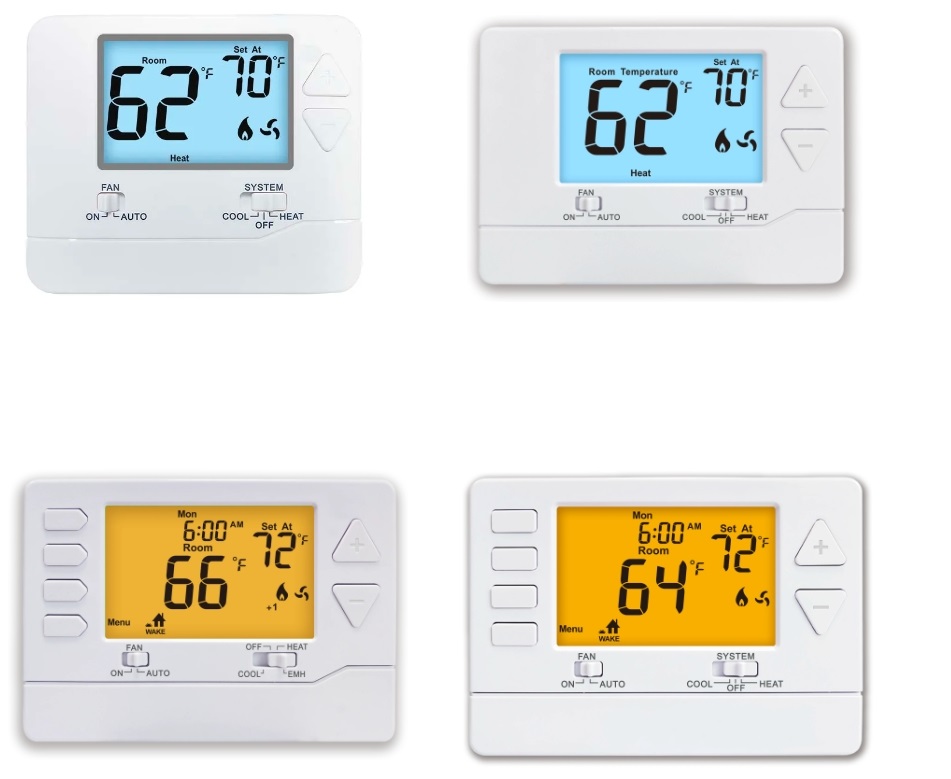

• Various backlight color optional
• Easy menu driven programming
• Intuitive wake, leave, return, sleep programming icons
• Electric or Gas configurable

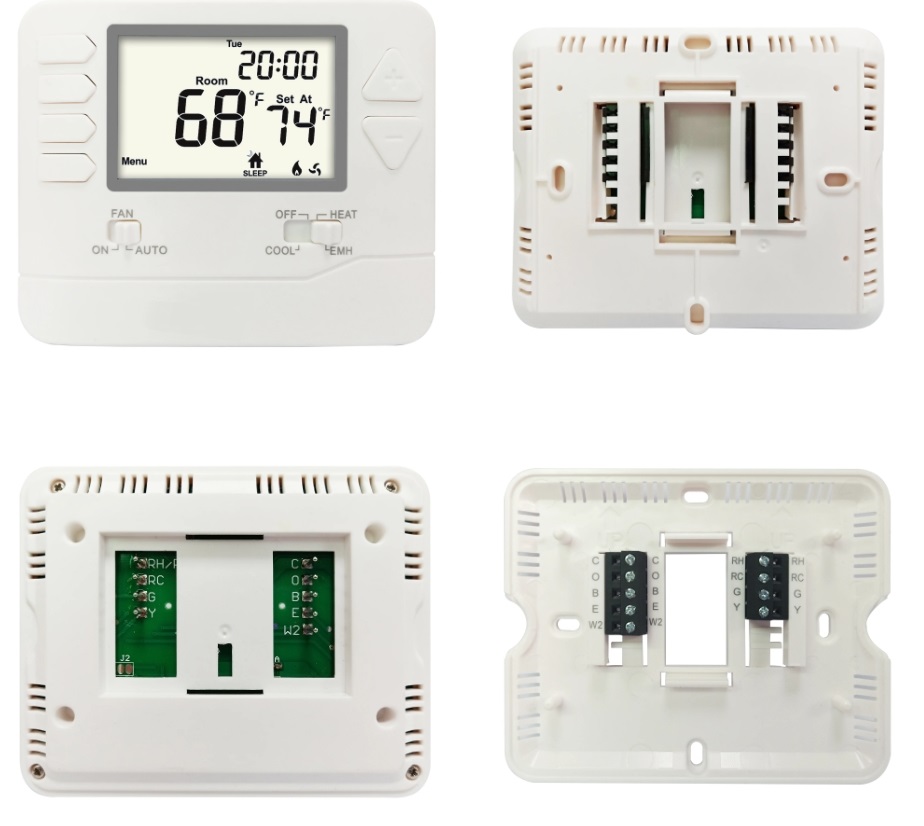

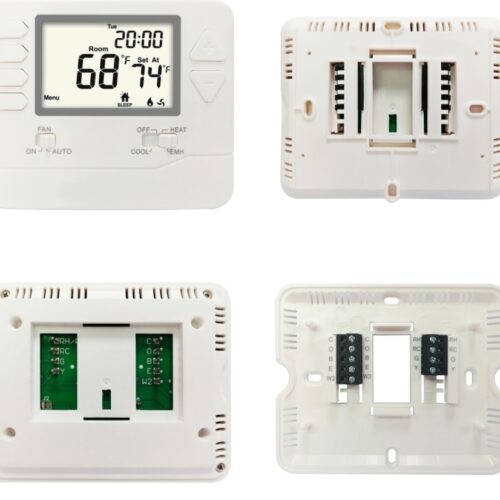

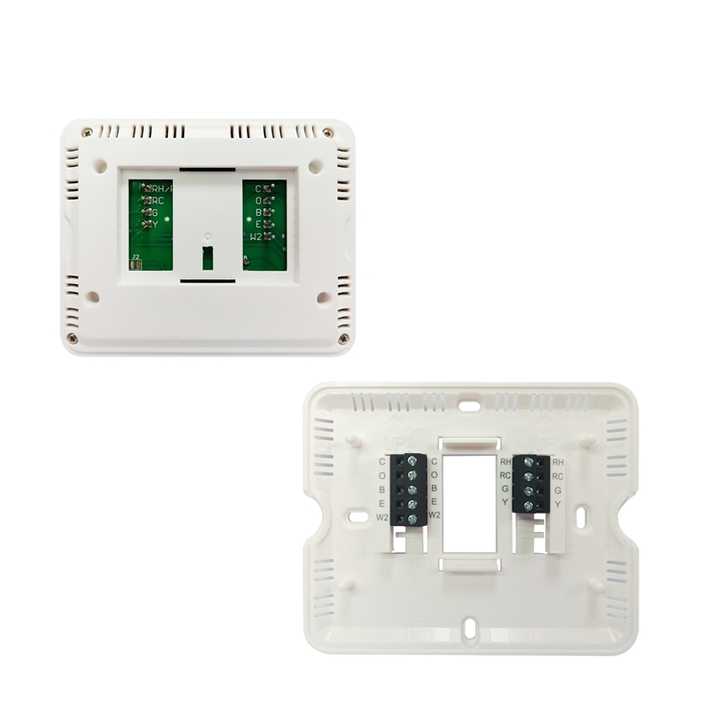

• Separate B & O terminals
• Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
• Filter change indicator (selectable on or off)
• Room temperature calibration adjustable
• 5 minute compressor delay protection (selectable on or off)
• Contemporary design
• Factory pre-set programme
