Key attributesDescription
| Model Number | STN855 |
| Application | Hotel |
| Design Style | Contemporary |
| Material | Anti-flammable PC +ABS |
| Place of Origin | Guangdong, China |
| Brand Name | OEM/ODM |
| Type | Floor Heating Parts/Air Conditioning/Heating/HVAC Systems/Radiator/Ventilation/Cooling/Fan coil units/Boilers |
| Certification | CE ROHS |
| Feature | Save Energy |
| Backlight | White/Blue/Green |
| Color | White/Customixed |
| Relay | Omron |
| Theory | Temperature controller |
| Power Supply | 24V power or battery |
| Screen | LCD Touch Screen Thermostat |
| After-sale Service | Online technical support, Return and Replacement |
| Project Solution Capability | graphic design, 3D model design |
| Warranty | 1 Year |
Specification
| Programmability | 5/1/1 programmable |
| Sensor | NTC |
| Power Supply | 230VAC, 50HZ |
| Display accuracy | ±1°C (at 20°C) |
| Switchable Current | 6 A (2 A inductive load) |
| Temperature Range | 32℉-99℉ (1℃-40℃) |
| Shell Material | PC+ABS (Fireproof) |
| Power Consumption | 2W |

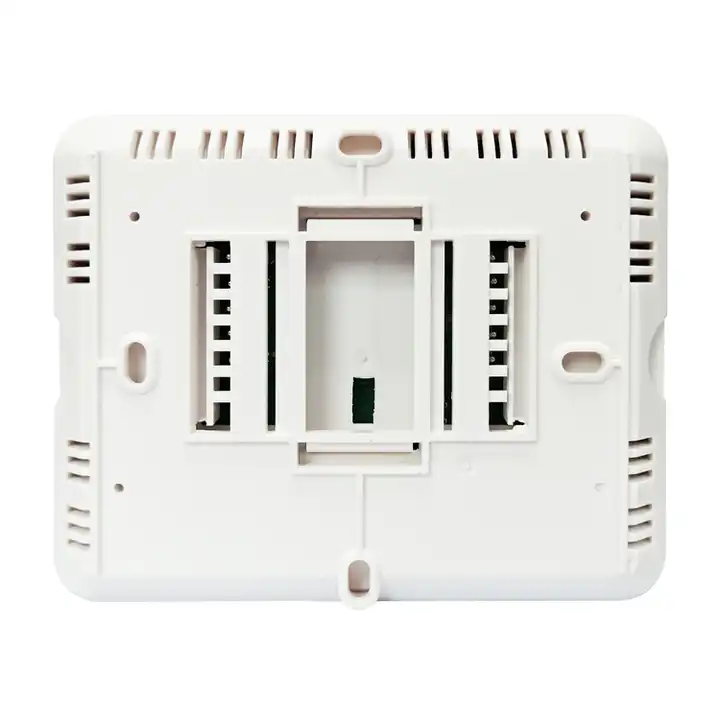

| Installation | Mounts on wall or junction box |
| Dimensions | 120 x 98 x 28 mm |
Product Description

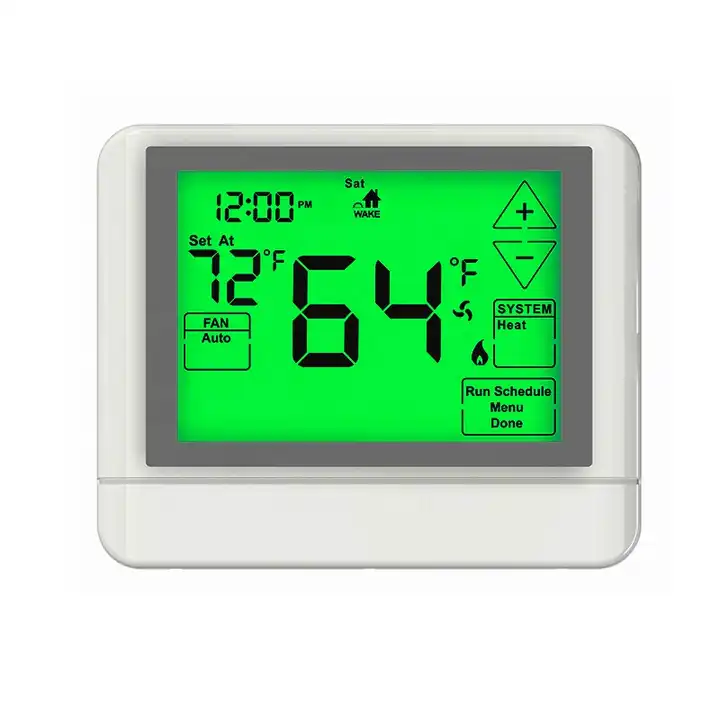

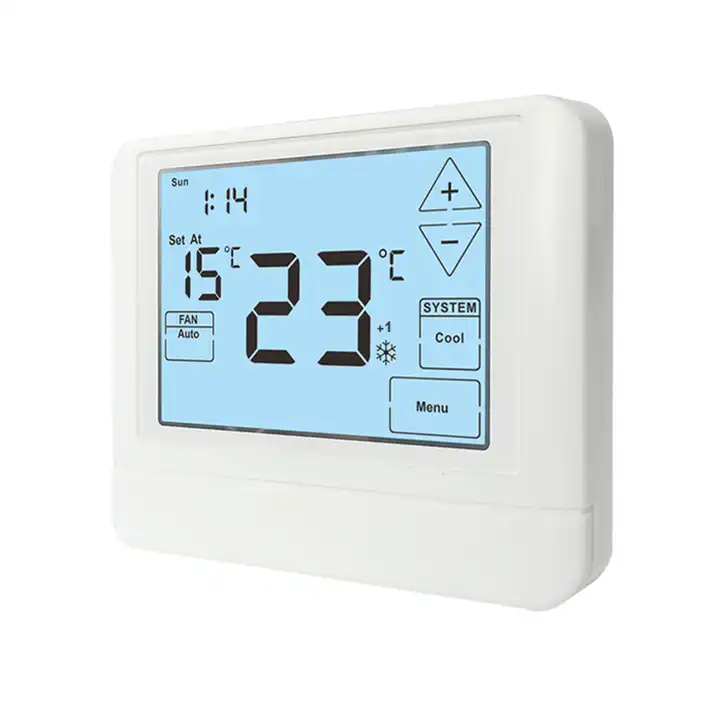

STN855 is a digital thermostat with a large LCD screen and full touch buttons. It detects the indoor temperature through a high-precision sensor inside the thermostat. Compared with the temperature set by you in real time, it can automatically adjust the air intake for heating and cooling or switch the electric valve to maintain the indoor temperature.
1. Universal
2. Up to 2 Heat, 2 Cool Conventional
3. Up to 3 Heat, 2 Cool Heat Pump
4. Auto Changeover
5. Easy menu driven programming
6. Intuitive wake, leave, return, sleep programming icons
7. Electric or Gas configurable
8. Room temperature calibration adjustment
9. Heating and cooling setpoint limits
10. 5 minute compressor delay protection (selectable on or off)
11. Filter change indicator(selectable on or off)

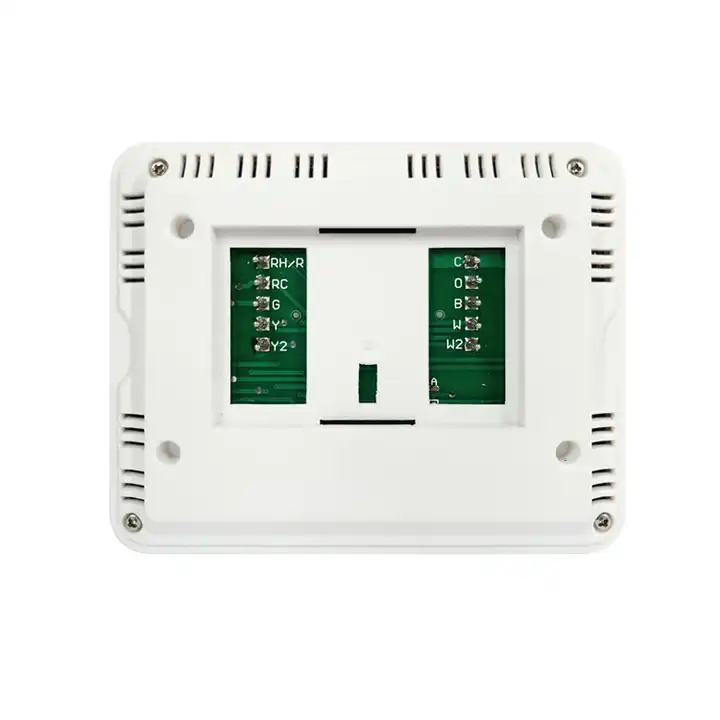

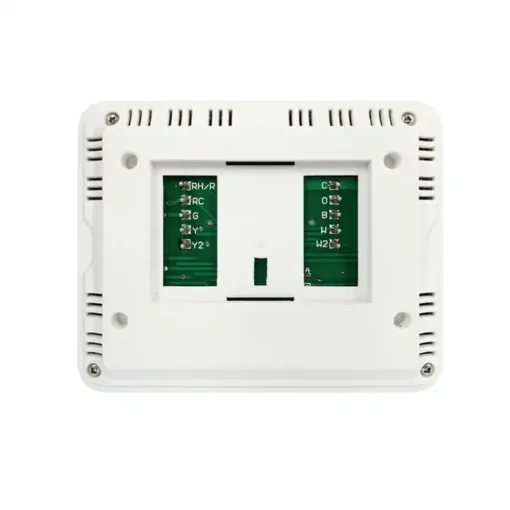

12. Easy wire color coded terminal blocks
