Key attributesDescription
Model Number | STN601 |
Application | Apartment |
Design Style | Contemporary |
Material | Anti-flammable ABS |
Place of Origin | Guangdong, China |
Brand Name | OEM/ODM |
Feature | Save Energy |
Backlight | Orange/White/Blue/Customied |
Color | White |
Relay | Omron |
Theory | Temperature Controller |
After-sale Service | Online technical support, Free spare parts, Return and Replacement |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
Warranty | 1 Year |
Specification
Programmability | Non-programmable |
System Switch | HEAT/OFF/COOL MODE Switch |

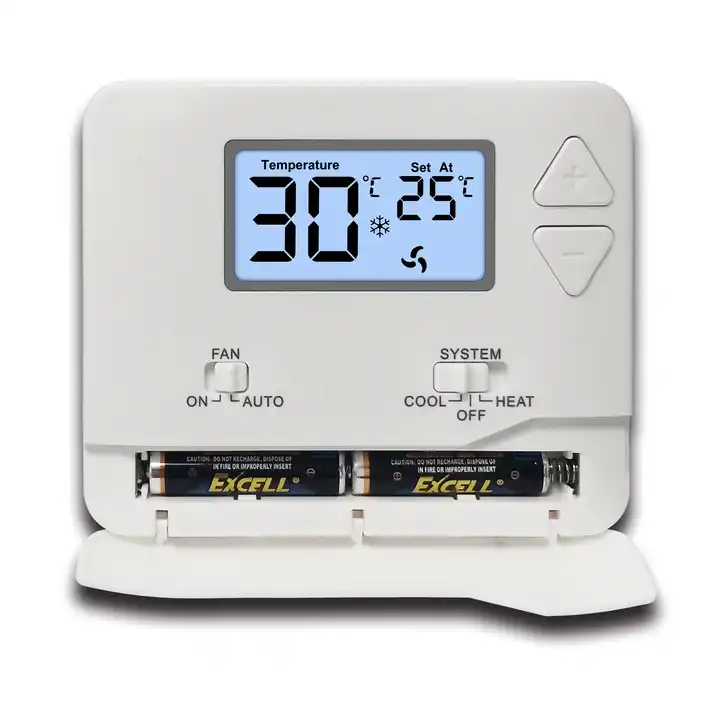

Power Supply | 2 x AAA 1.5V Lithium batteries Or 24V |
Display accuracy | ±1°C (at 20°C) |
Temperature Range | 32℉ to 99℉ (1℃ to 40℃) |
Setpoint Range | 44℉ to 90℉ (7℃ to 32℃) |
Power Consumption | 2W |
Dispaly | 2.5 Sq.Inch |
Dimensions | 120 x 98 x 28 mm (without holder) |

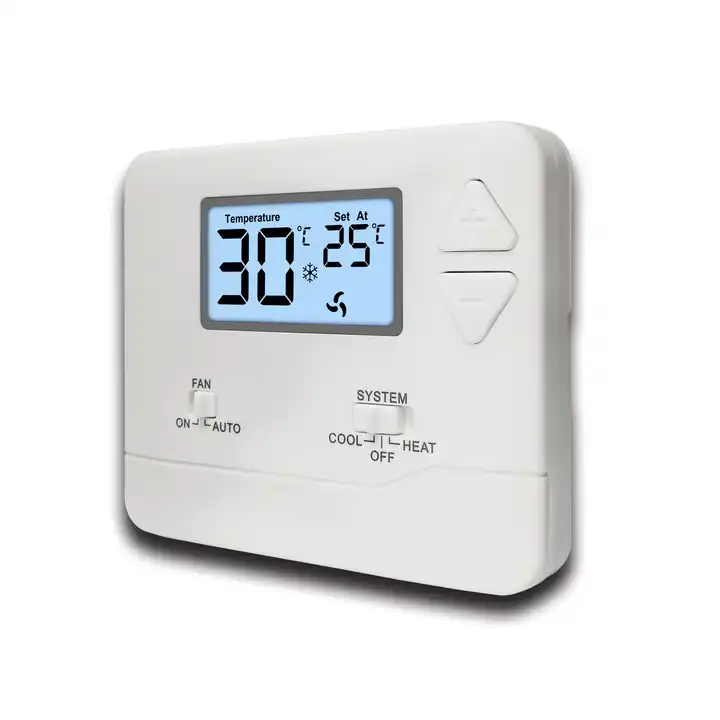

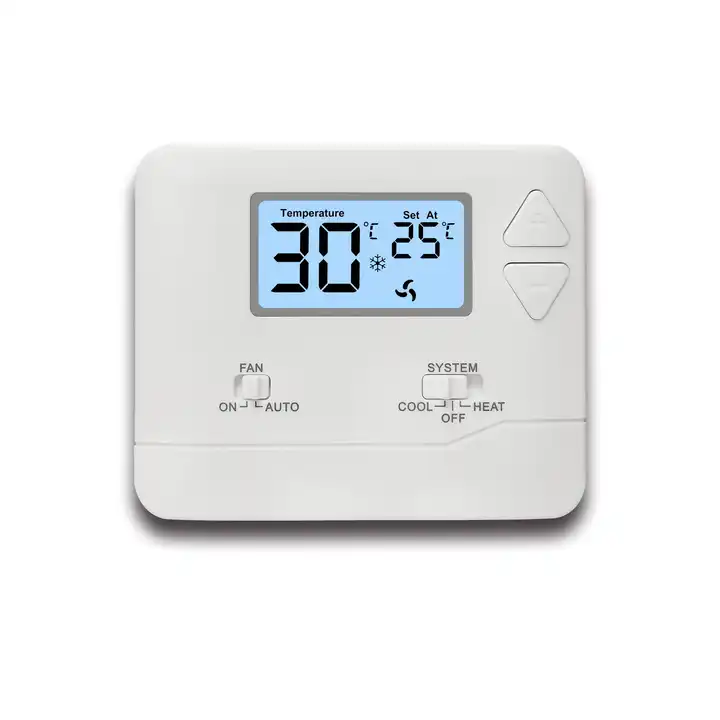

Product Description:

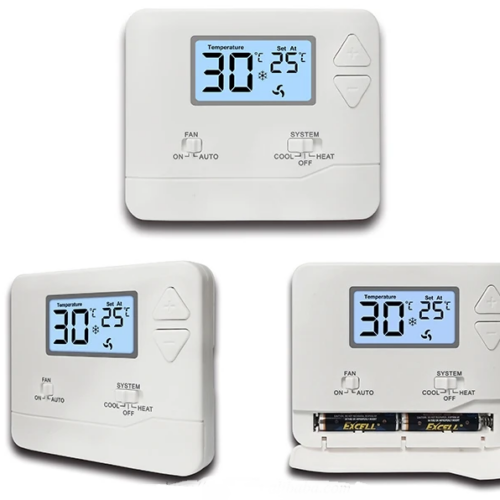

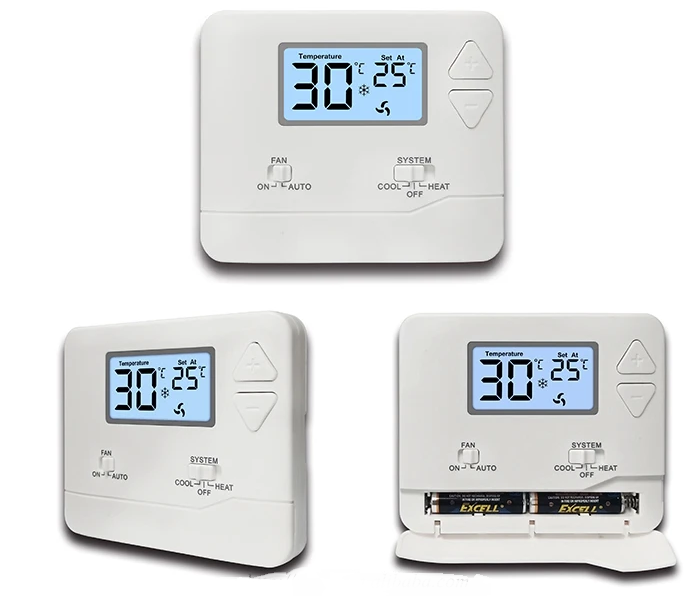

>> Battery or 24V hardwired power
>> Various backlight?color optional
>> F/ °C?Switch
>> Easy menu driven programming
>> Intuitive wake, leave, return, sleep programming icons

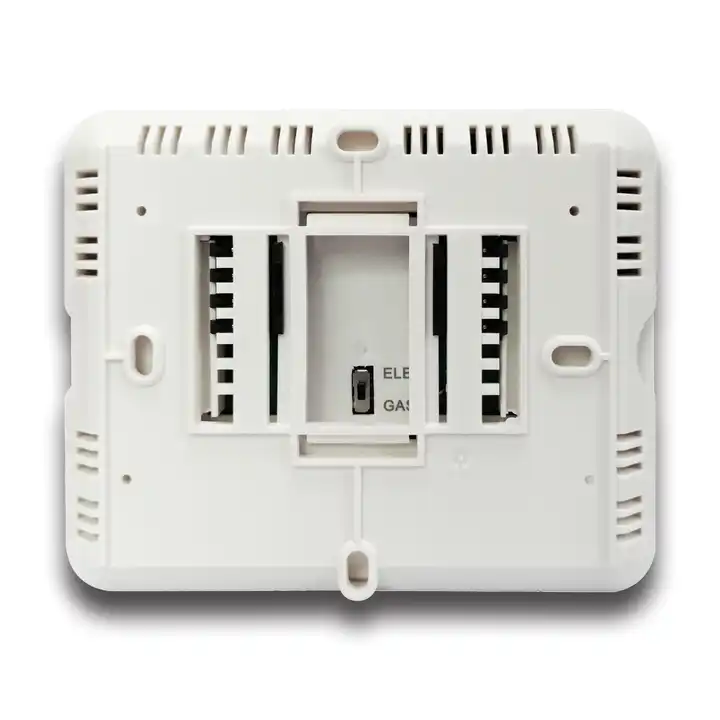

>> Electric or Gas configurable

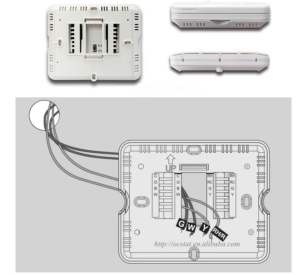

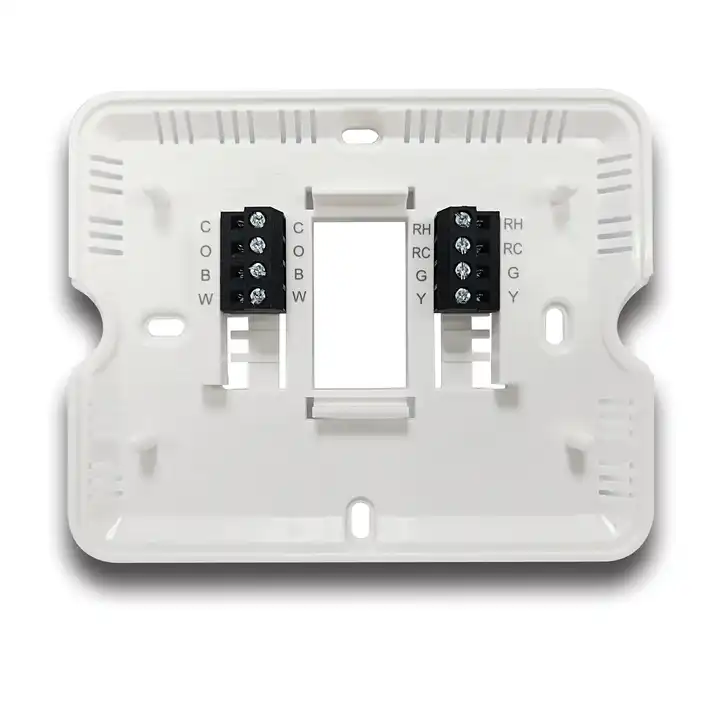

>> Separate B & O terminals
>> Separate heating and cooling swing (cycle rate) adjustments including 2nd?stage adjustments
>> Filter change indicator (selectable on or off)
>> Room temperature calibration adjustable
>> 5 minute compressor delay protection (selectable on or off)
>> Contemporary design
>> Factory pre-set programme
