Key attributesDescription:
Model Number | STN701 |
Application | Hotel, Apartment, Office Building |
Design Style | Modern |
Material | Flame Retardance ABS |
Place of Origin | Guangdong, China |
Brand Name | OCSTAT |
Feature | Eco-friendly |
Backlight | Blue/Green/White/Orange |
Color | White |
Relay | Omron |
Power Supply | 24V Power |
After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE |
Project Solution Capability | graphic design |
Warranty | 2 years |
Specification:
Stages | 1 HEAT & 1COOL |
Programmability | Non-programmable |
Low battery indicator | Under 2.7 V (without 24V power supply) |
System Switch | HEAT/OFF/COOL |
Sensor | NTC |
Display accuracy | ±1℉(under 68℉) |
Switchable Voltage | 24 VAC(18 to 30 VAC), 50/60 Hz 2*AAA 1.5V Alkaline batteries power |
Temperature Range | 32℉ to 99℉ (1℃ to 40℃) |
Setpoint Range | 44℉ to 90℉ (7℃ to 32℃) |
Dimensions | 120 x 98 x 28 MM |
Product Description:
>> 1 Heat / 1 Cool
>> Non programmable

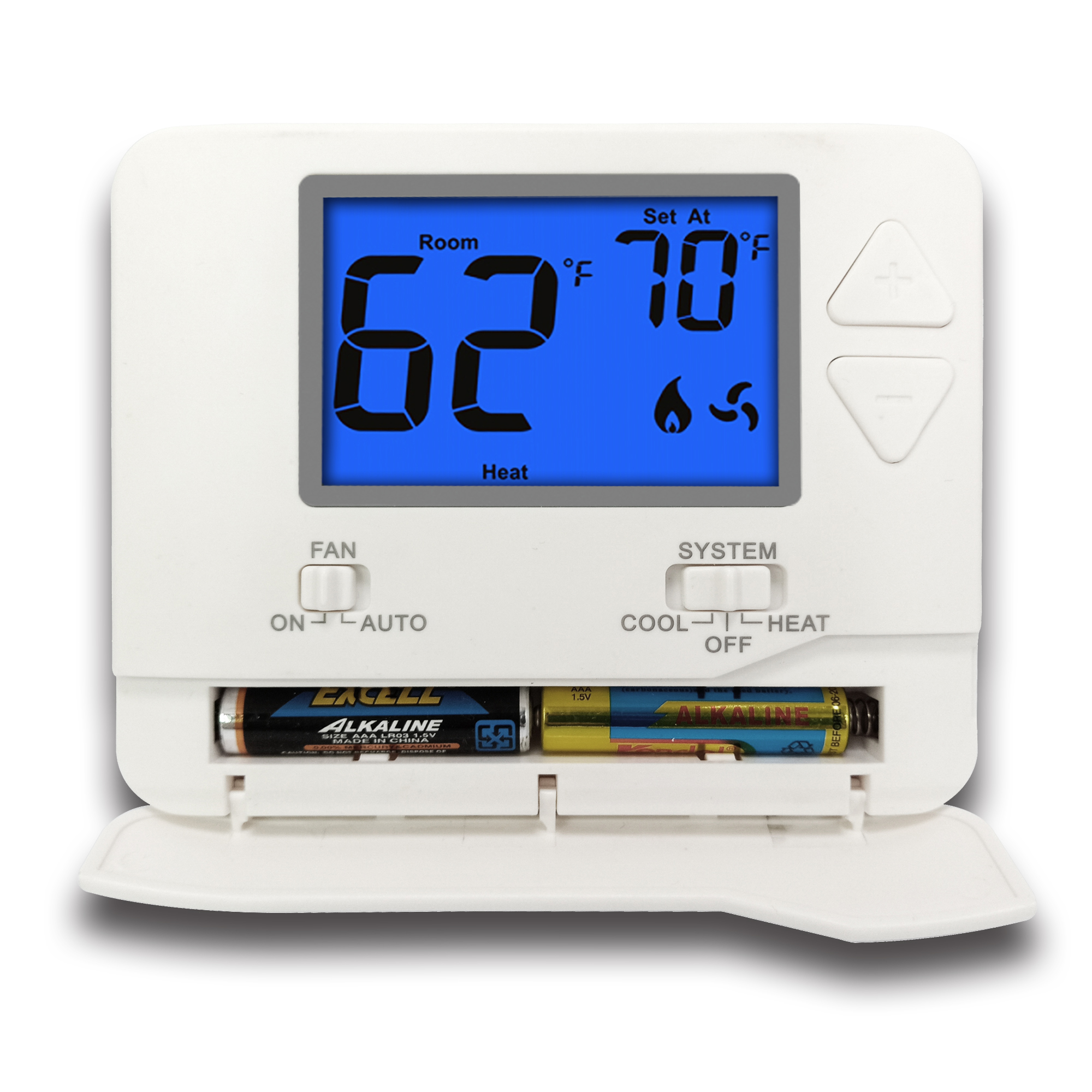

>> Batteries or 24V power

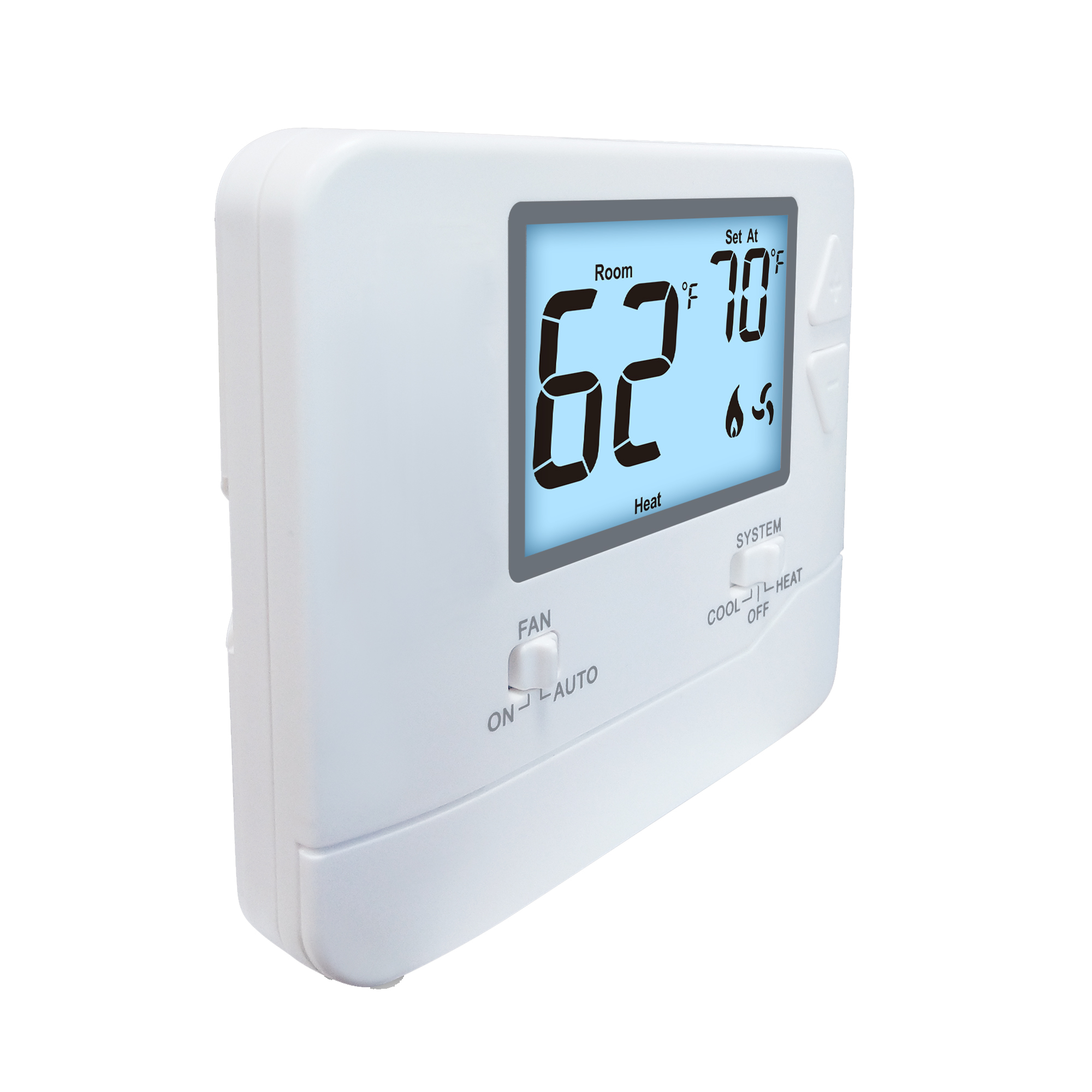

>> Large, easy to ready clear LCD display

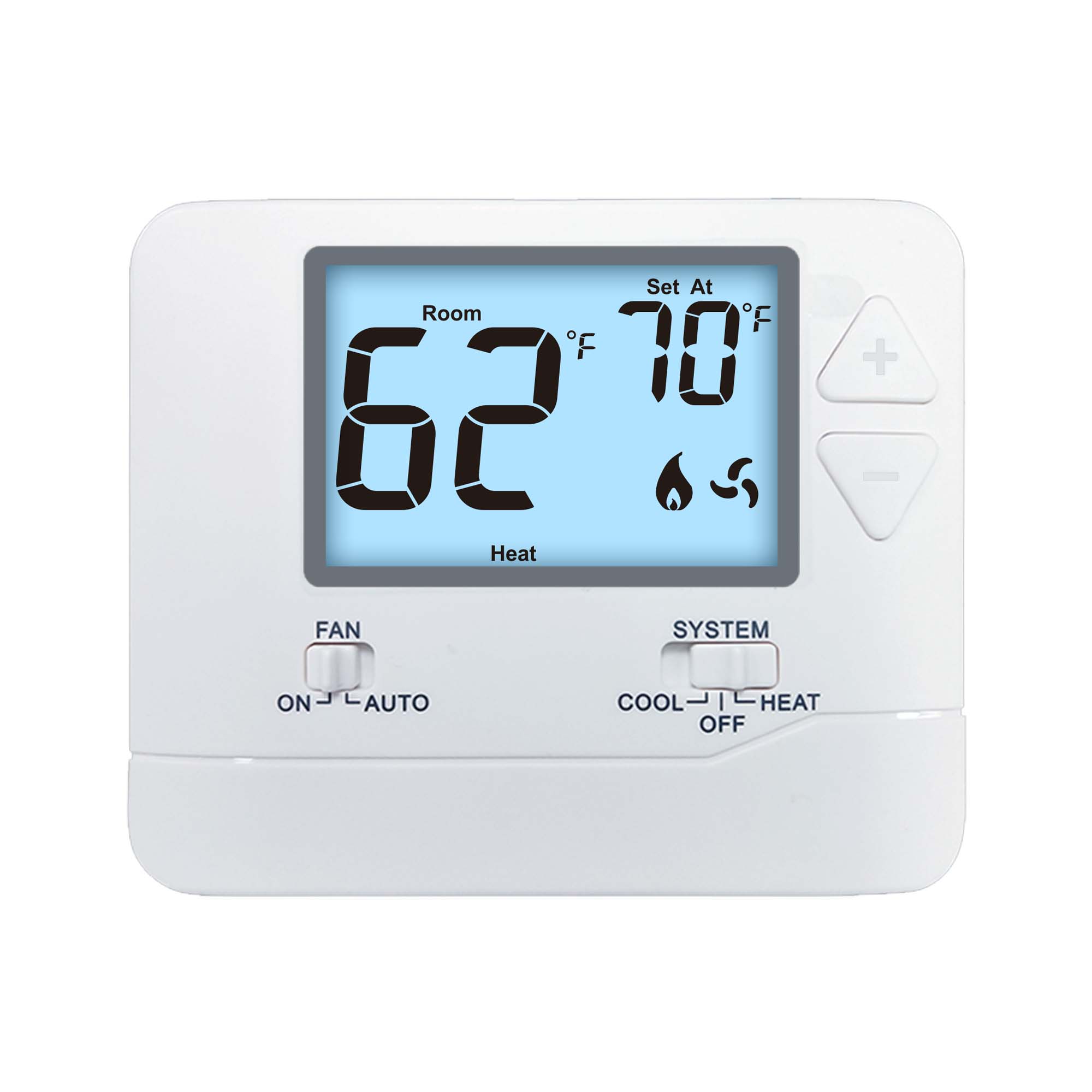

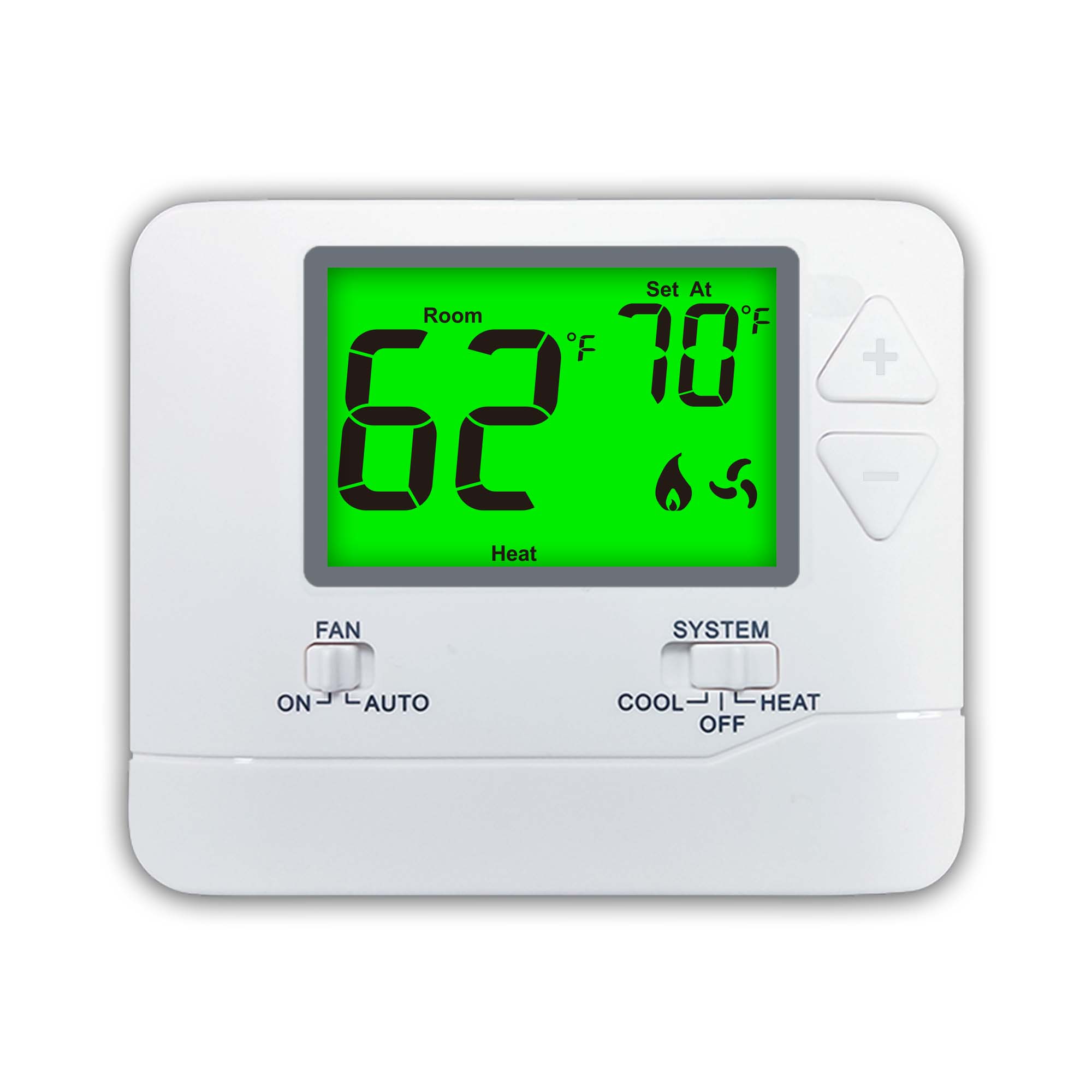

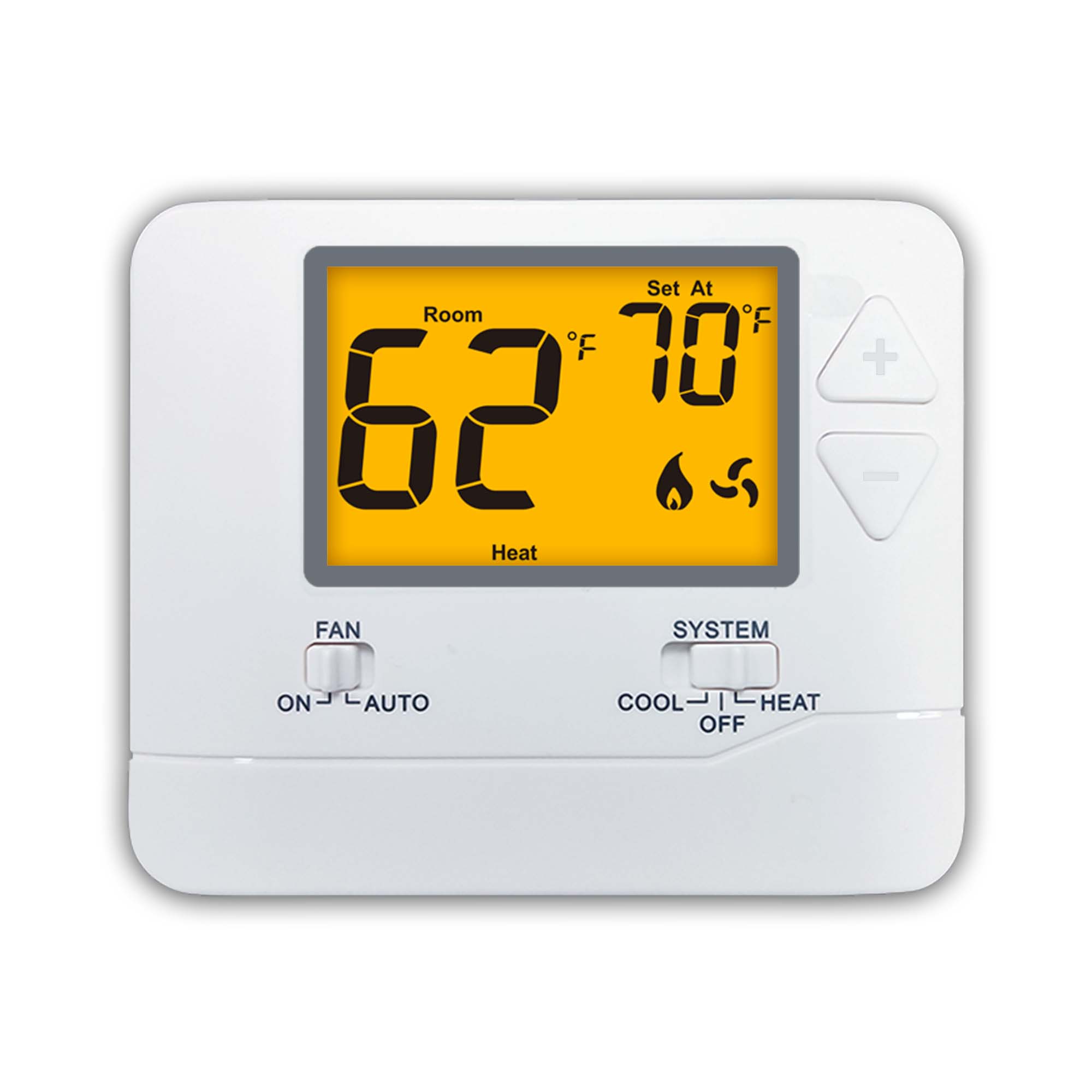

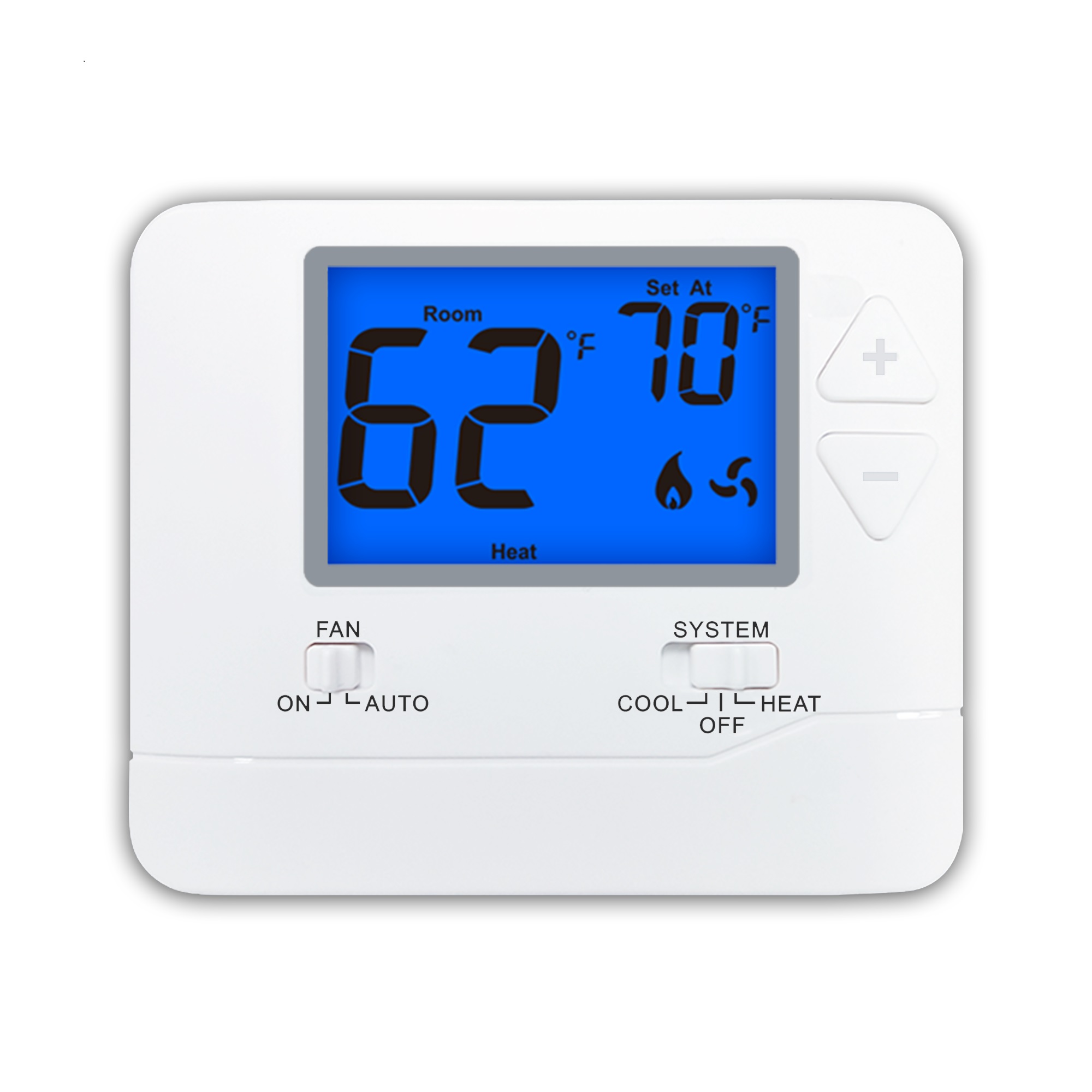

>> Various backlight color optional

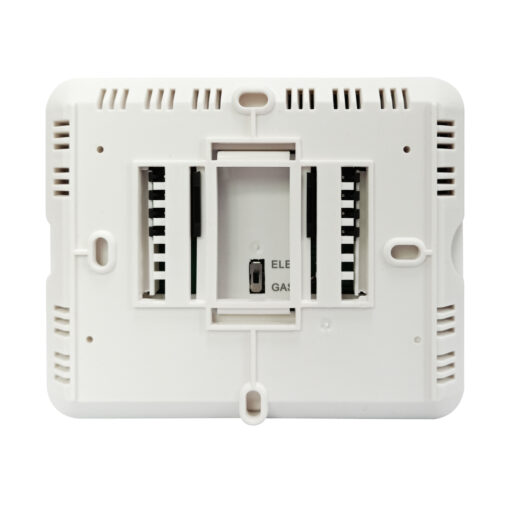

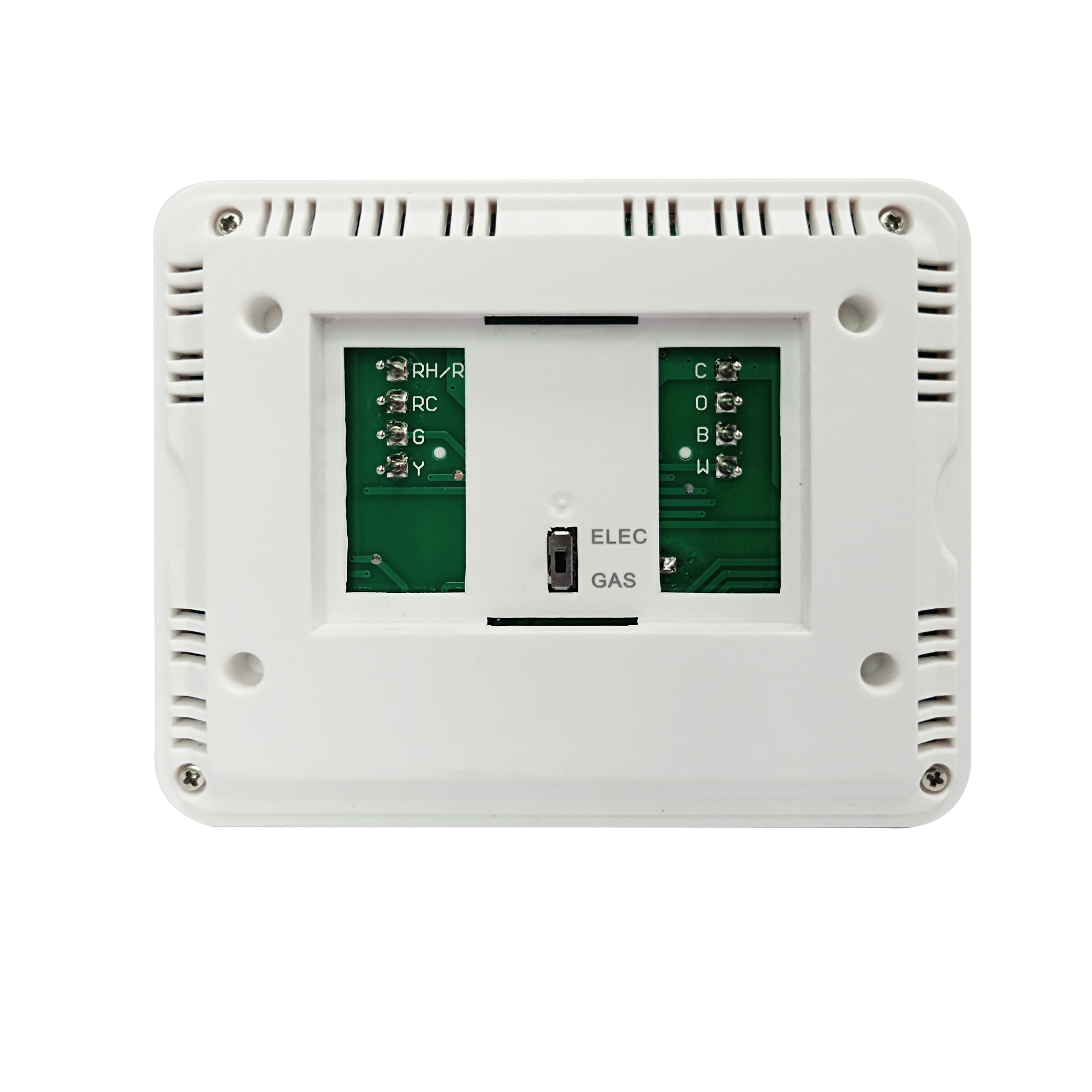

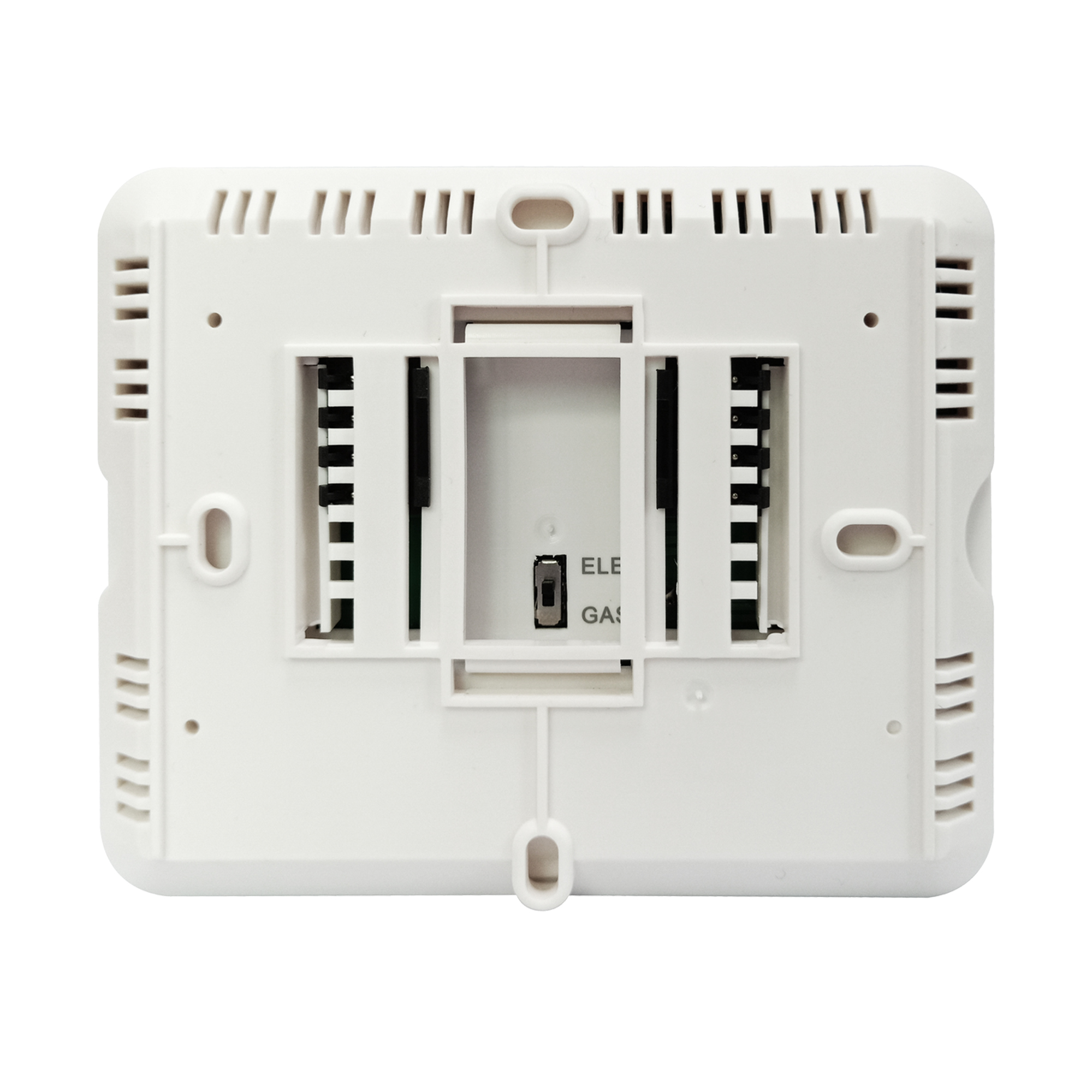

>> Electric or Gas configurable

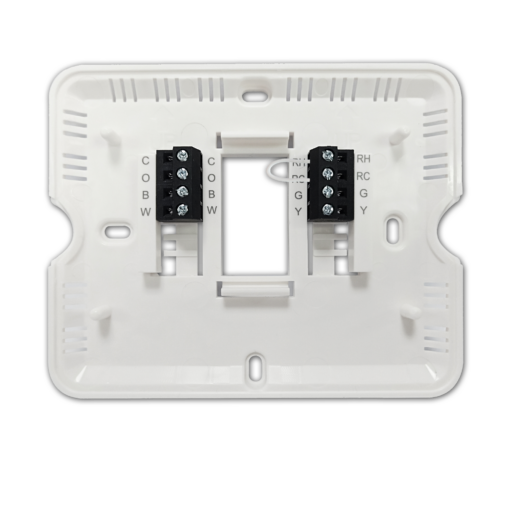

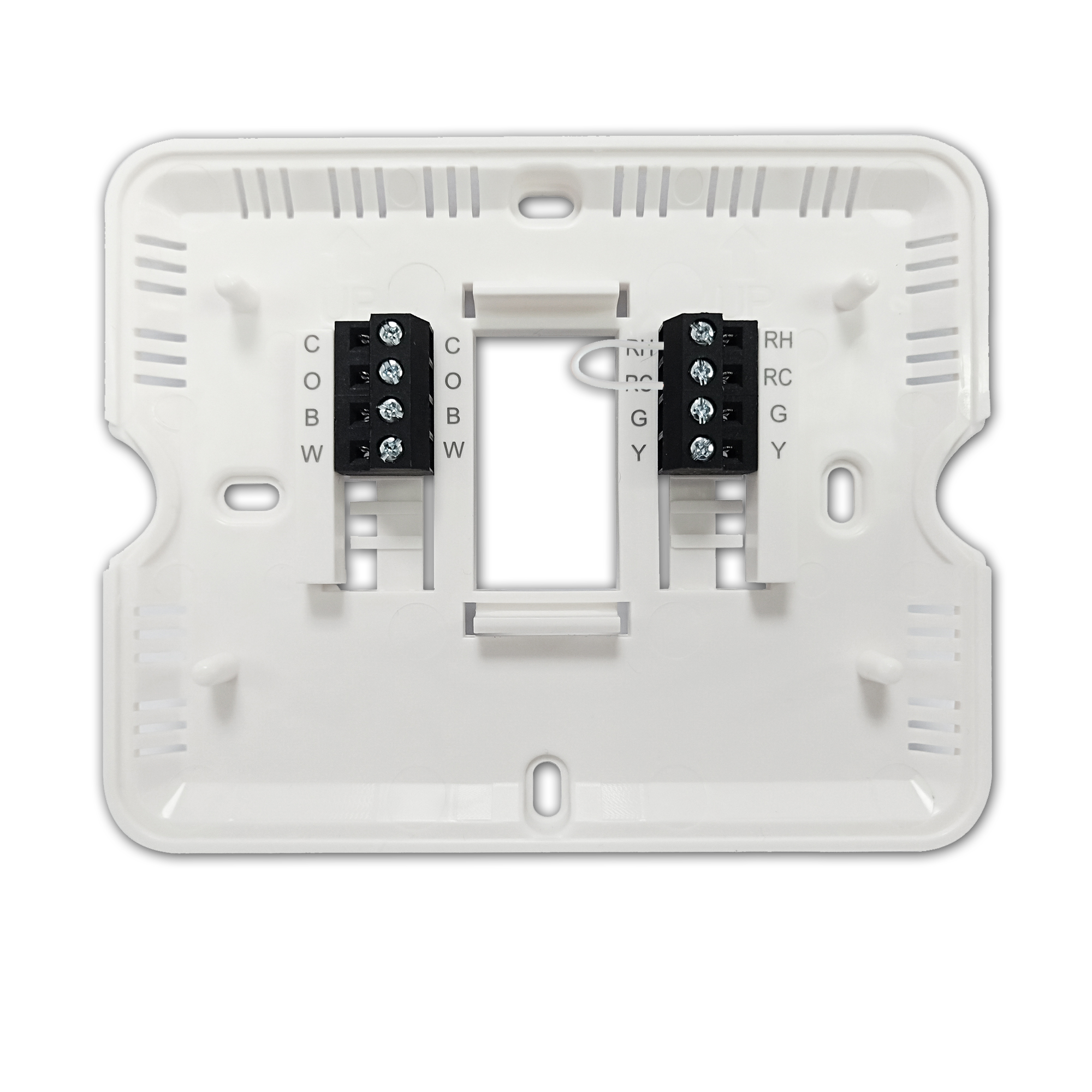

>> Separate B & O terminals
>> Separate heating and cooling swing (cycle rate) adjustments
>> Room temperature calibration adjustable
>> 5 minute compressor delay protection (selectable on or off)
>> Contemporary design
