Key attributesDescription:
Model Number | S2302 |
Material | Anti-flammable PC +ABS |
Place of Origin | Guangdong, China |
Brand Name | ODM/OEM |
Type | Floor Heating Parts |
Certification | ISO9001/CE |
Feature | Keypad Lockout |
Screen | LCD |
Function | Control temperature |
Specification:
Programmability | 7 Day Programmable |
System Switch | HEAT/COOL MODE Switch |
Power Supply | 2 x AAA 1.5V Lithium Batteries |
Display accuracy | ±1°C (at 20°C) |
Switchable Voltage | 24 V AC / DC,…250 V AC; 50 Hz |
Switchable Current | 6 A (2 A inductive load) |
Temperature Range | 0°C-40°C in 0.1°C |
Setpoint Range | 5°C-35°C in 0.5°C |
Storage Temperature | -10°C to +60°C |
Dimensions | 119 x 80 x 26 mm |

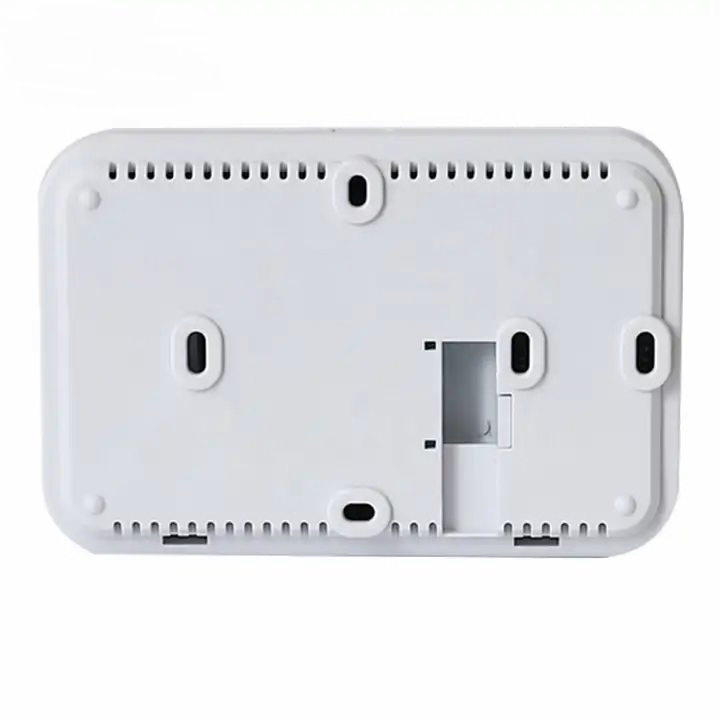

Product Description:
• Large, easy to ready clear LCD display

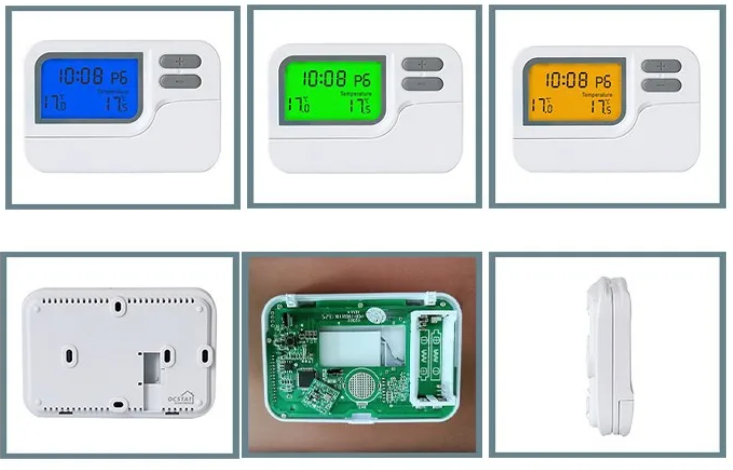

• Various backlight color optional
• Room Temperature Calibration adjustment (in -3~+3°C)
• Switching sensitivity adjustable
• Heat Pump
• Keypad Lockout
• Factory pre-set programme
• Easy installation
