Key attributesDescription:
Model Number | S725 |
Application | Electric Systems |
Material | Anti-flammable PC +ABS |
Place of Origin | Guangdong, China |
Brand Name | OCSTAT |
Type | Floor Heating Parts |
Certification | ISO9001 |
Feature | Heat Pump style |
Power Supply | 24VAC |
Screen | LCD |
Function | Temparature Control |
Specification:
Stages | 2 Heat, 1 Cool |
Programmability | 5-1-1 Day Programmable |
Power Supply | Battery or 24VAC power |
Temperature Range | 41°F to 95°F |
Setpoint Range | 44°F to 90°F |

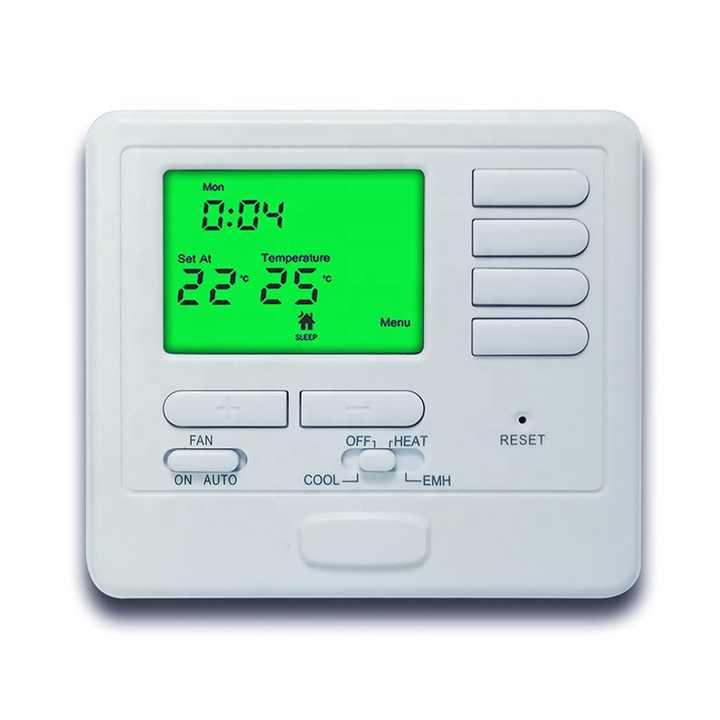

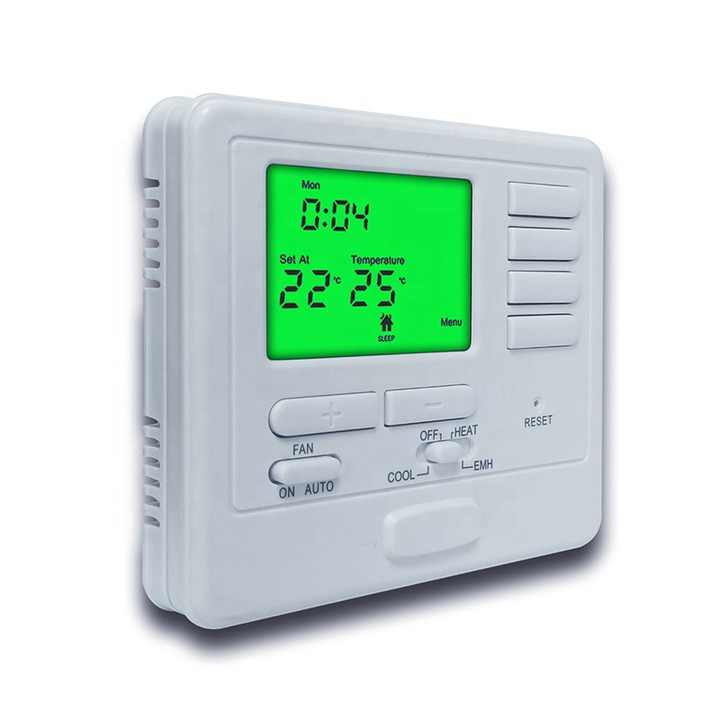

Dispaly | 4 sq. inch large LCD display with green backlight |

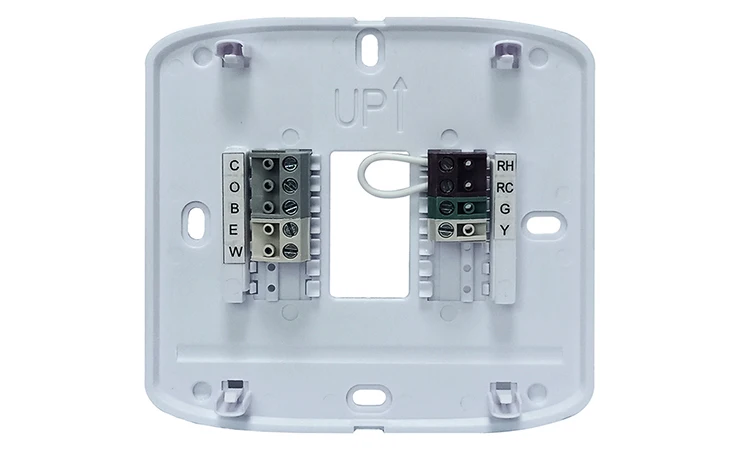

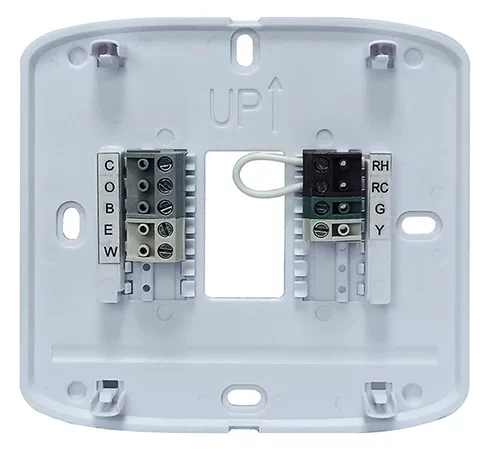

Terminal Designations | RH,RC, G, Y, C, O, B, E, W |

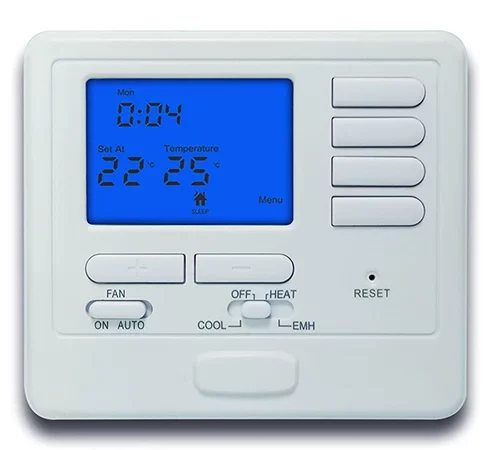

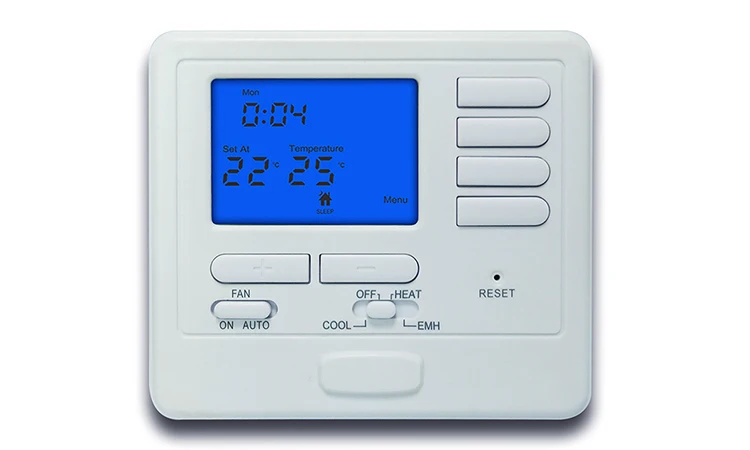

Product Description:
This is a 24VAC low-voltage and Millivolt System programmable thermostat for room use, compatible with heat pump (with aux) systems,compressor short cycling protection. not compatible with 120/240-Volt electric. with 1-year warranty.
It does NOT work with electric baseboard heat (120-240 V).
·Easy menu driven programming
·Intuitive wake, leave, return, sleep programming icons
·Fan switch with ON and AUTO functions

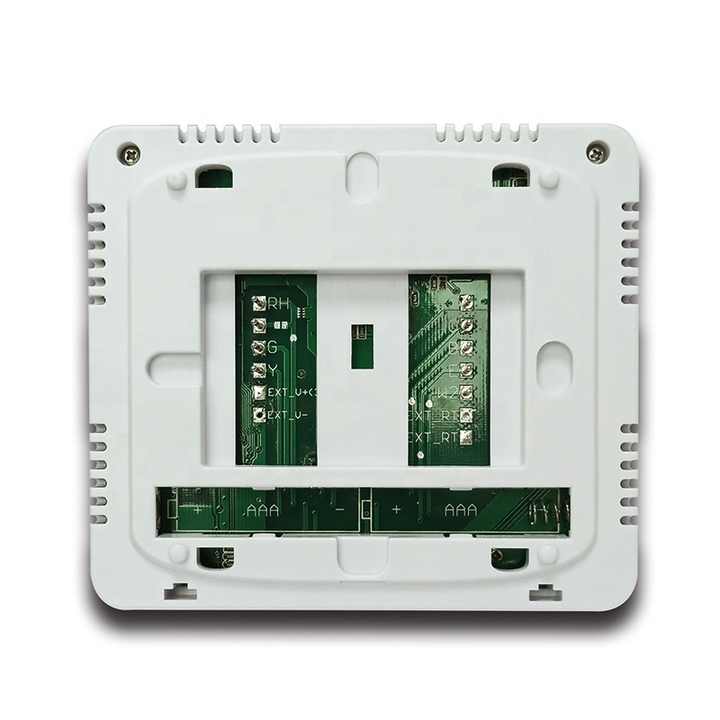

·Easy access battery compartment
·Electric or Gas configurable
·Separate B & O terminals
·Separate heating and cooling swing (cycle rate)
·Air filter change indicator (selectable on or off)
·Low battery indicator
·Room temperature calibration adjustment
·Easy wire coded terminal blocks

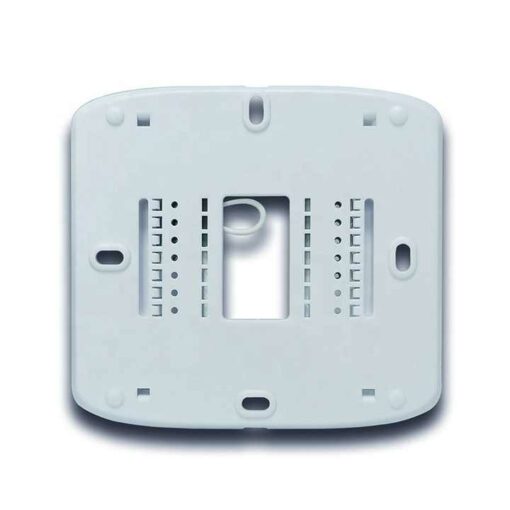

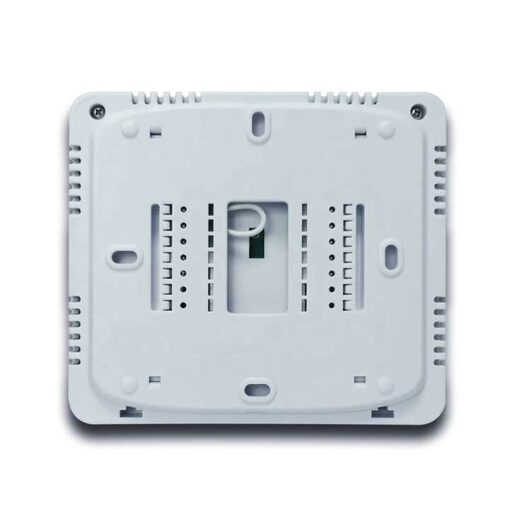

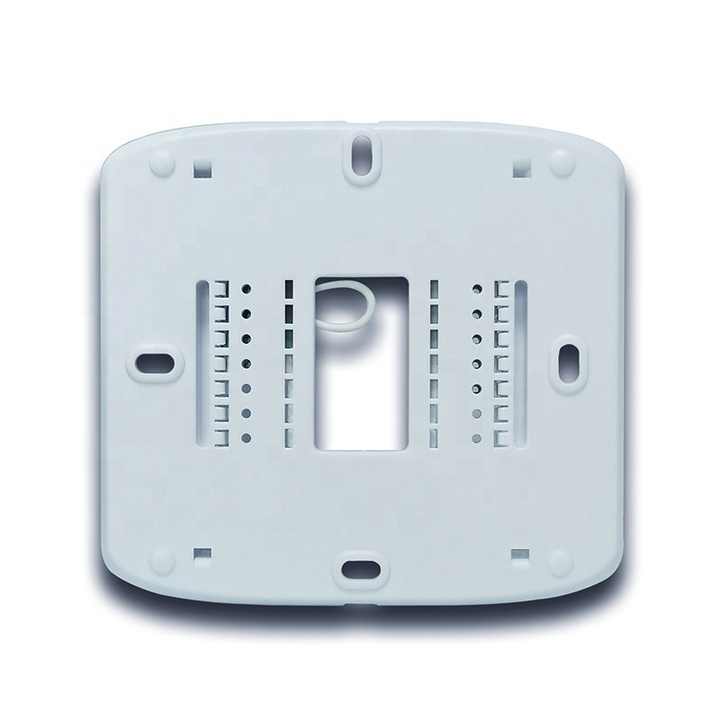

·Universal sub-base
